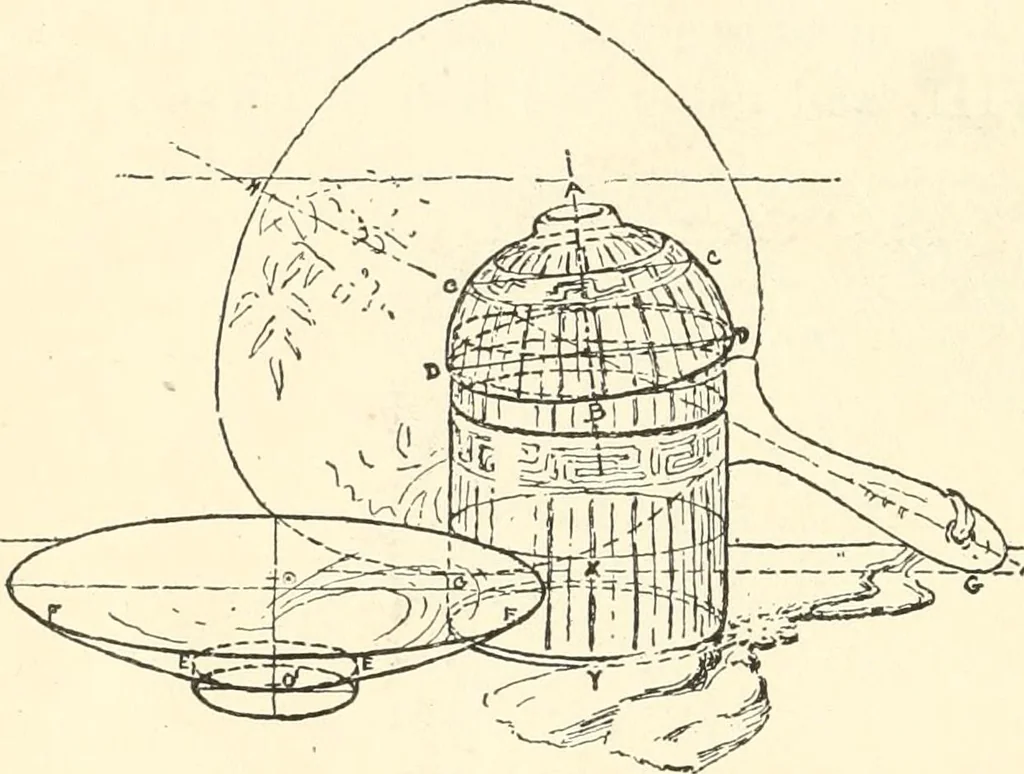

estimated true middle (0 in Fig. 49) of the top of thedish, giving O for the true center of the lower ellipse. The footis like a very short cylinder. The flaring sides of the dish aredrawn tangentially from the rim (F, F) to the upper ellipse ofthe foot. The Ornament.— In drawing the ornament on… … Fig. 49 OBJECTS FROM MEMORY Chapter IV. Note the foreshortening in its details, and how theHnes of the fret express the curving form of the cover. It willbe seen that the stripes on the object and some lines of the fretfollow the profile lines mentioned in Chapter VI. The Fan. — Like the plate in…
