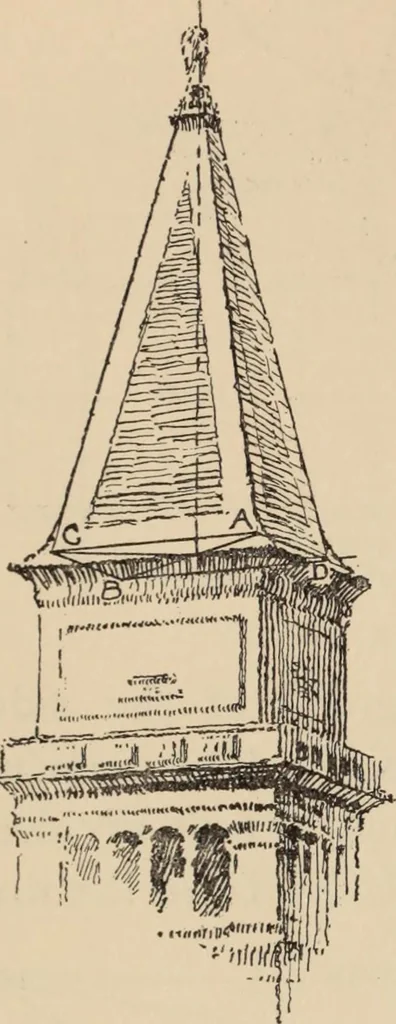

ed back on the diagonal AE to 0it would appear to shorten as moved. Its topwould describe an actually horizontal lineabove AE, that is, a line parallel to it, conse-quently vanishing to the same point. There-fore continue the diagonal AE to the eye level,giving VP3, and draw the parallel line… … Fig. 145 a church spire or a tower (Pig.145) stand true will be readilyrecognized. The use of the di-agonals (AB and CD) will aidin placing its axis and apex. Any upright rectangular ob-ject with equally sloping sides iseasily constructed on the sameprinciple, as the grape basket inPig. 145a. If…
