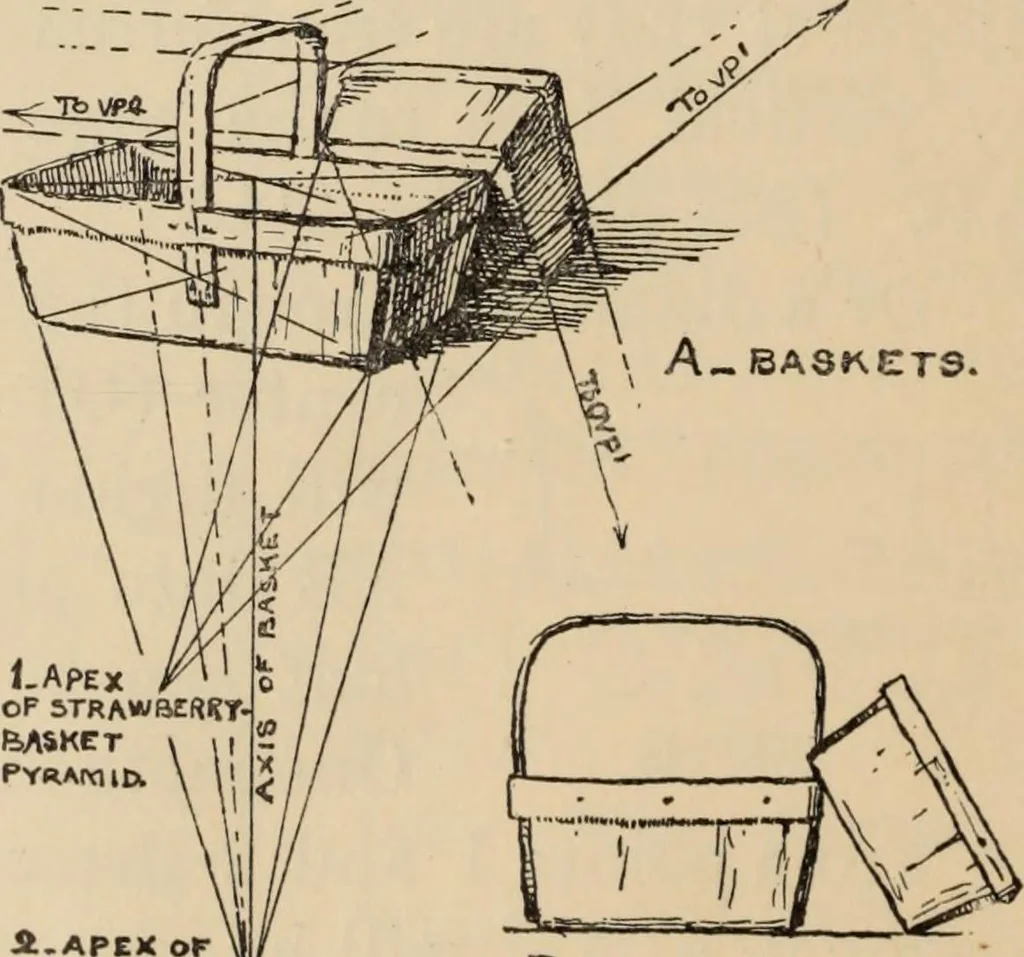

Fig. 145 a church spire or a tower (Pig.145) stand true will be readilyrecognized. The use of the di-agonals (AB and CD) will aidin placing its axis and apex. Any upright rectangular ob-ject with equally sloping sides iseasily constructed on the sameprinciple, as the grape basket inPig. 145a. If… … A.APEX or C»?APr-BA«KKT Y PYRAMID B _ END VfEW OF BASKETS , Fig. 145a 90 Chapter XXVI THE SQUARE FRAME LEANING ON THE RECTANGULAR BLOCK—A PROBLEM FOR ORIGINAL STUDY THE Models. — These have already been described on pages48 and 85, respectively.Position— The block rests on one long face, with…
