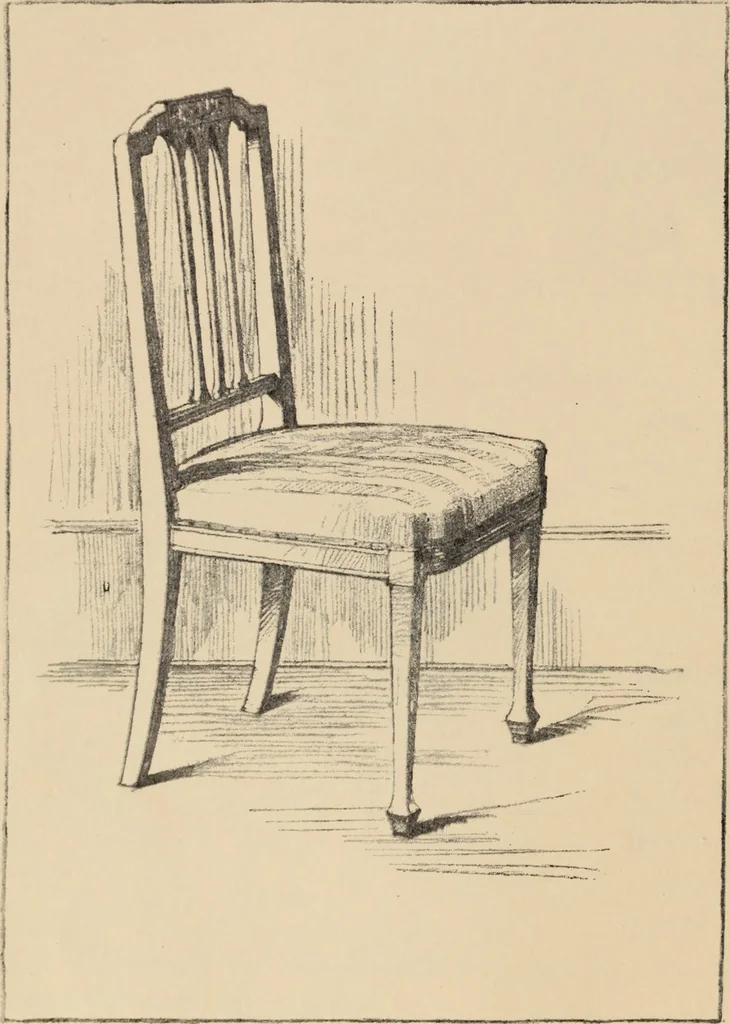

, like most chairs is different fromthe stool in our first interior study (Ch. XXXIII) inthat the sides are not parallel to each other (see plan, Fig. 189). Alsothe seat is atrifle lowerin the back,so that linesB, B (Fig. 190)slope down-ward towardthe back. Butthe chair issymmetrical onits center… … Fig. 188 A CHAIR PLAN OF 5CAT paper and located the eye level, the next step is to take the direc-tion of the front and side of the seat (lines A and B, Fig. 190).Leaving line A for the present we carry line B out, obtainingVPl. The feet, being on the horizontal floor, fall in lines vanish-ing to…
