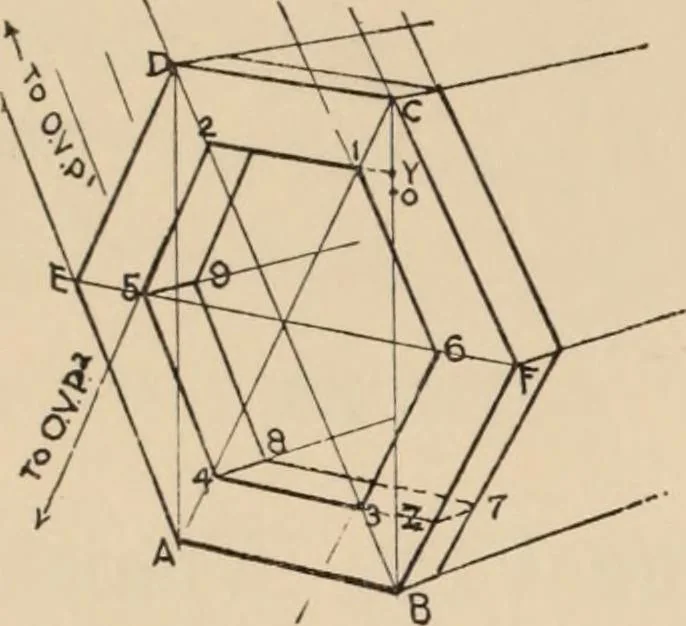

Face view or fpame Section of frameFig. 204 1 This method is given in a slightly different form under Solutions of Problems, Chapter XVI. 129 … FREEHAND PERSPECTIVE For the inner hexagon we may first study the actual shape inFig. 204, where it is seen that the vertical frame thickness canbe conveniently carried across to measure it at Cy on thenearest vertical, BC. We know this thickness to be one inch,which is more than one sixth and less…
