Frequency measurements in wireless telegraphy (1911)
Hyslop, William Henry · leaf 36

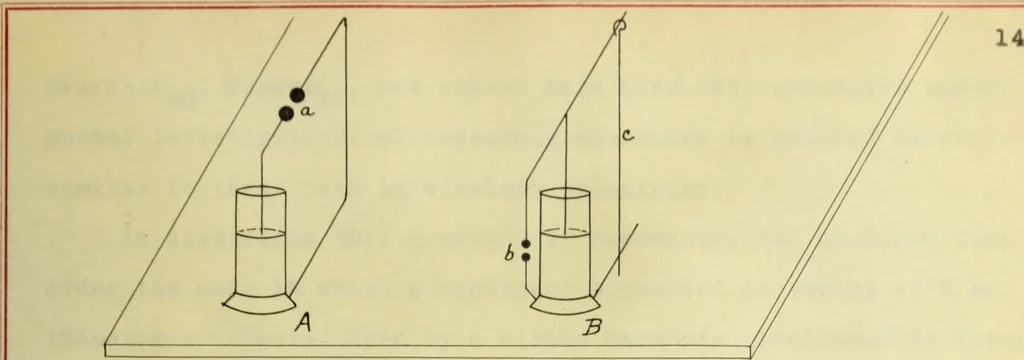

he two forks are said to be in resonancei with each other. A common lecture experiment in physics is known as the Lodgeexperiment, and illustrates in a simple manner the principle ofelectrical resonance. The apparatus (Pig. 18) consists of twoLeyden jar circuits A and B, placed about a meter apart… … Fig. 18. B is similar to A except that the side c of the rectangle may be shifted from one position to another along the horizontal portionof the circuit, changing the dimensions of the rectangle and hencethe inductance of the circuit. The two Leyden jars have approx-imately the same capacity, as…
Telegraph, Wireless · Theses
