Frequency measurements in wireless telegraphy (1911)
Hyslop, William Henry · leaf 48

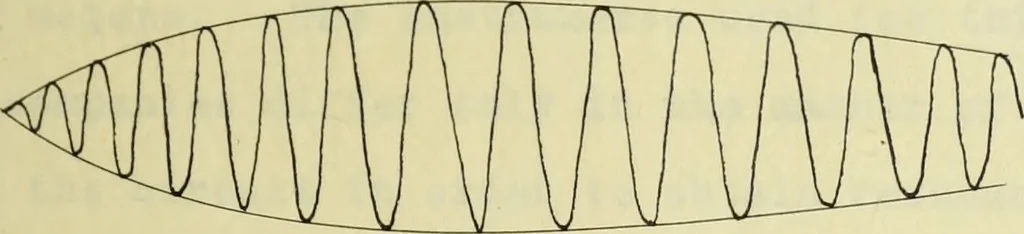

lectricity in the secondarycircuit as a single oscillation, where the amplitude M and thephase angle m* are both complicated functions of the time t. Thequantity M also contains the exponential terms which determine therate of decay of the oscillation. By drawing the amplitude curves y ±M, Bjerknes… … Fig. 21. both circuits have the same period but different damping, thecurve takes the form of Fig. 22, which differs but little fromFig. 21. This case applies particularly to two practical wire-less circuits in resonance, since owing to differences in construct-
Telegraph, Wireless · Theses
Internet Archive · University of Illinois Urbana-Champaign · Public Domain Mark 1.0. Free to use for anything.
