Frequency measurements in wireless telegraphy (1911)
Hyslop, William Henry · leaf 82

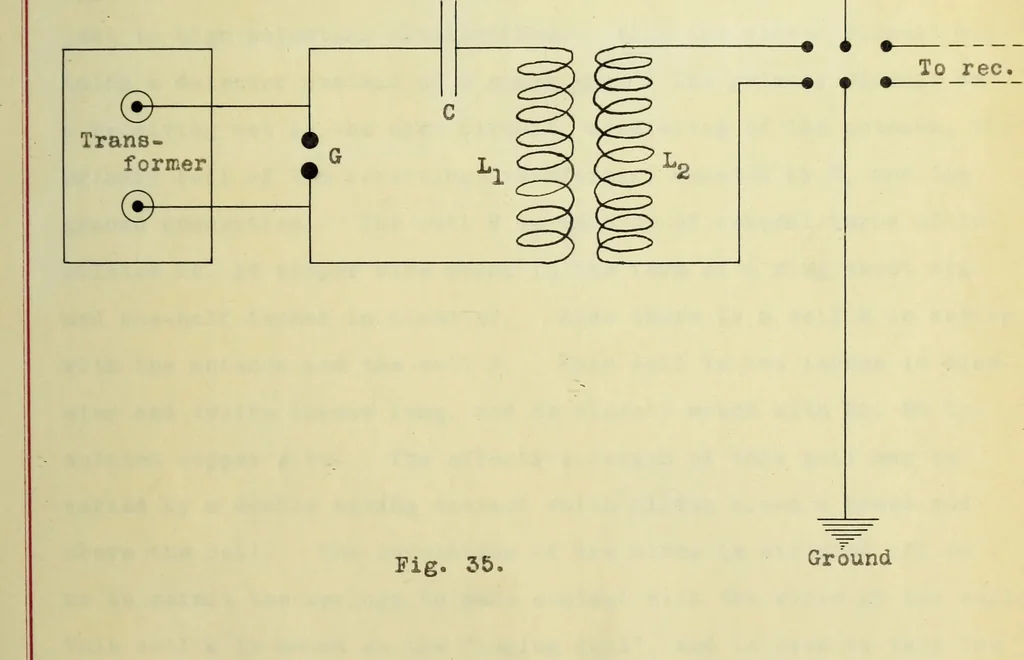

oss to the third story of the Physics building. The connections for the sending apparatus are shown in Pig.35. The primary circuit consists of the spark gap G, connectedin series with a battery of Leyden jars C, and the primary ofthe sending transformer. The Leyden-jar battery consists of ninejars… … 37 cuit is charged by a two kilowatt transformer whose secondaryterminals are connected in series with the Bpark gap. The secondary circuit consists of the antenna, the secondaryof the sending transformer, and the ground connection, all in ser-ies. The secondary L2 of the sending transformer is…
Telegraph, Wireless · Theses
