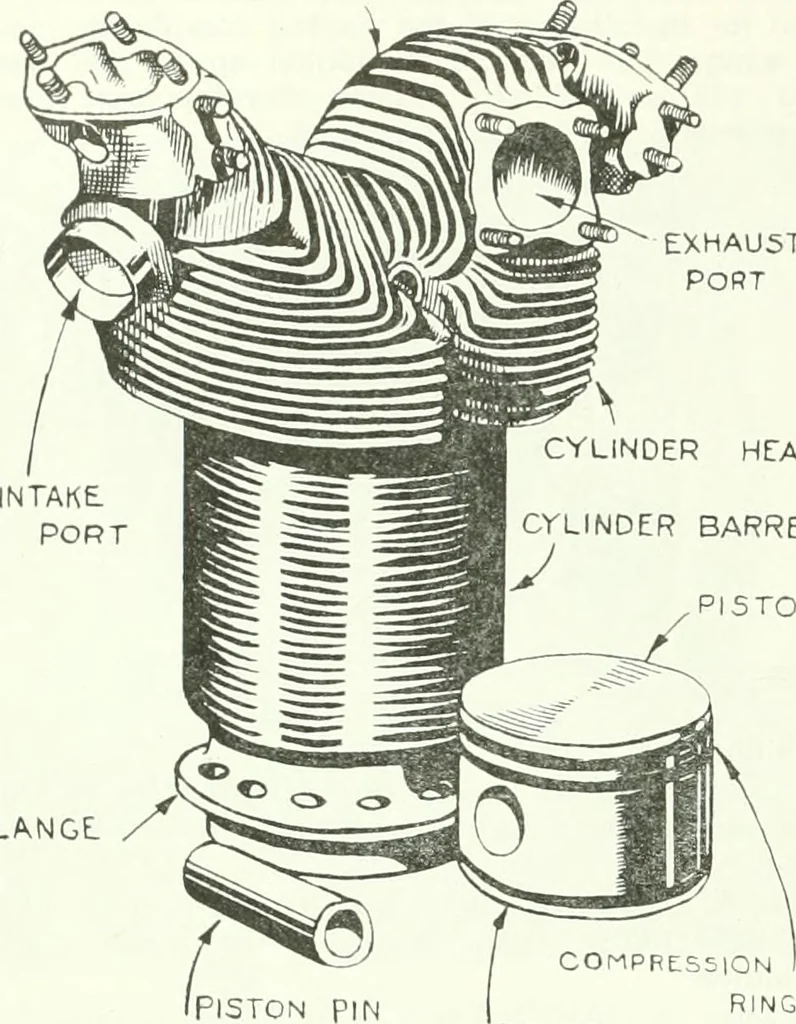

te which resists burning andcorrosion. Valve Seats are nickel-chrome-mangantse steel, or 114 Front The Ground Up aluminum bronze, shrunk or screwed into the cylinder.Crankcase. In-Line: Made of two light alloy castings joined, thetop hali of which carries the cyUnders and the botttomhalf forms the… … CruiNDER BARRELPISTON PLANGL RINGS OIL RINGFig. 9. Cylinder, Piston and Piston Pin. form of a hollow, barrel-shaped shell into which thecylinders are screwed. Crankshaft and Connecting Rods. The Crankshaft is machined from high tensile forged H TULIPTYPE
