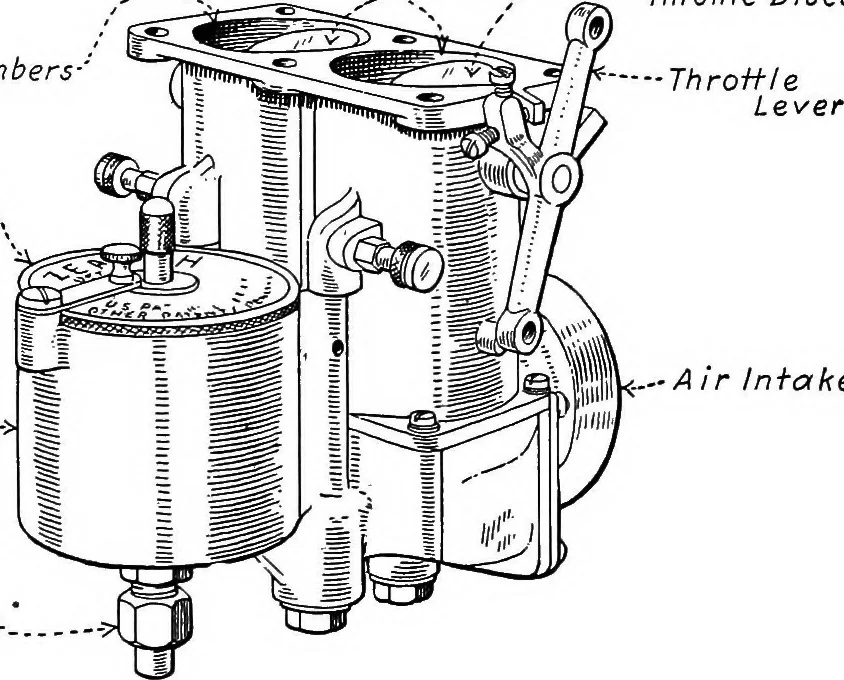

ition to the compound nozzle the Zenith isequipped with a starting and idling well, shown in thecut of Model L carburetor at P and J. This terminatesin a priming hole at the edge of the butterfly valve,where the suction is greatest when this valve is slightlyopen. The gasoline is drawn up by the… … -A ir Intake Fig. 53.—The Zenith Duplex Carburetor for Airplane Motors of the V Type. with the butterfly valve opened further the priming wellceases to operate and the compound nozzle drains the welland compensates correctly for any motor speed. With the coming of the double motor containing…
