Function and use of transformers in electrical work (1909)
Buchanan, John Lee · leaf 49

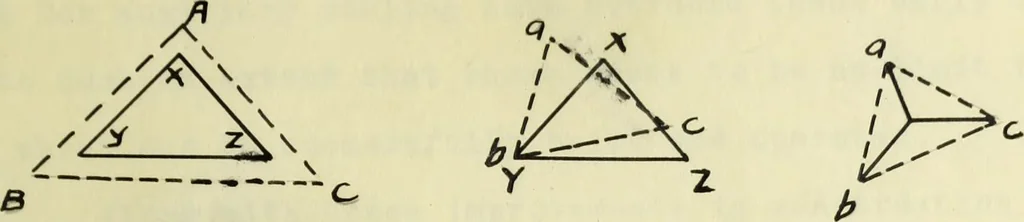

not work in parallel, vis!,. BATIK ALow Potential High Potential BATIK BLow Potential High Potential 7 Delta 8 Delta 9 Y 10 Y DeltaY DeltaY DeltaDelta Y Y Y DeltaY Delta The reasonp for the unsatisfacstory operation ofthese oombinations is obvious from the following diagrams.Referring to… … It is evident from the ahove diagrams that if b and ybe joined to parallel the high tension side, a phase displace-ment will result between a and x and q and z and should thesepoints be connected, this displacement will cause heavy shortcircuits and interrupt service with disasterous effects to…
Electric transformers · Current transformers (Instrument transformer) · Electrical engineering · Theses
Internet Archive · University of Illinois Urbana-Champaign · Public Domain Mark 1.0. Free to use for anything.
