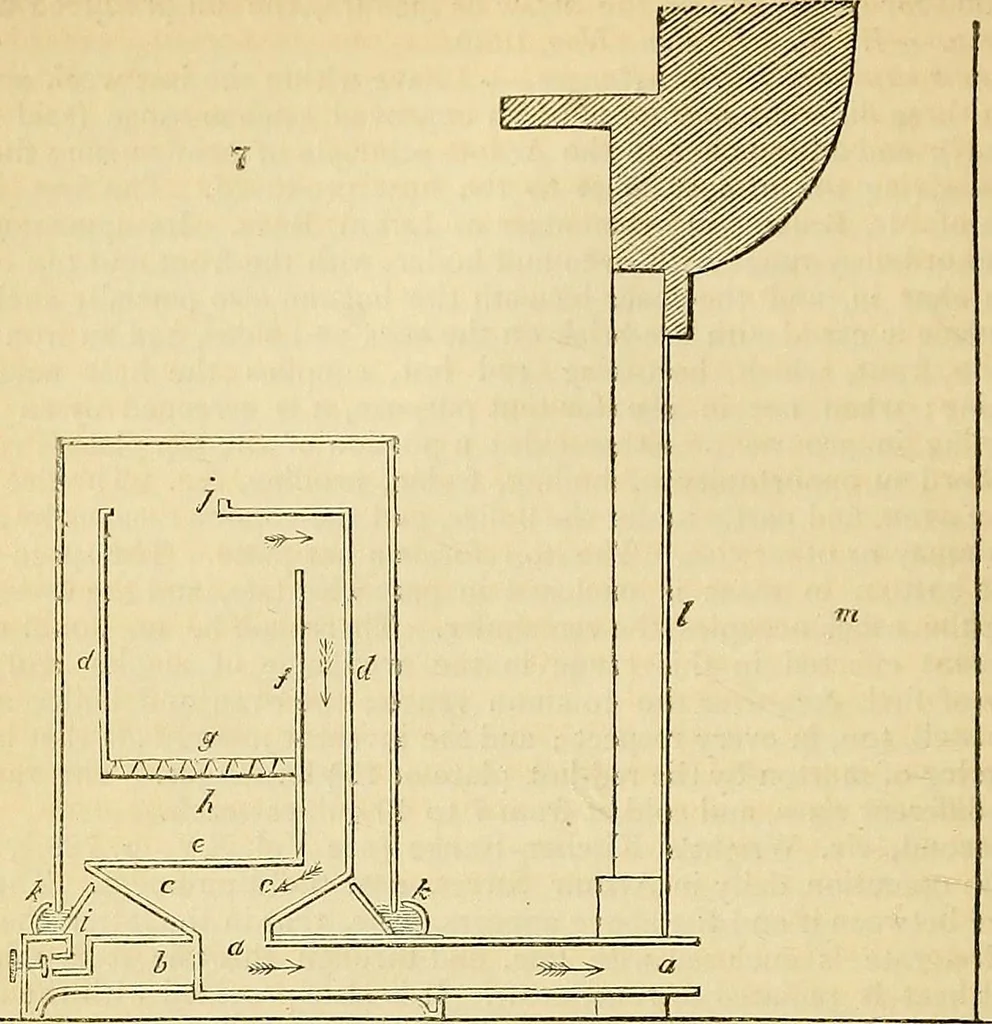

case of thin sheet iron, which may be removed at pleasure ; and an insidestove or fire-place which may be used either with or without the outside case. D 4 40 General Notices. … Fig. 5. is a perspective view of the stove with its case; ^g. 6. a view of thestove or fireplace with the case removed ; ^g. 7. a section showing its con-struction. The arrows mark the direction of the smoke in the descendingflue, a is the smoke-pipe that enters the chimney (m) at the bottom,…
