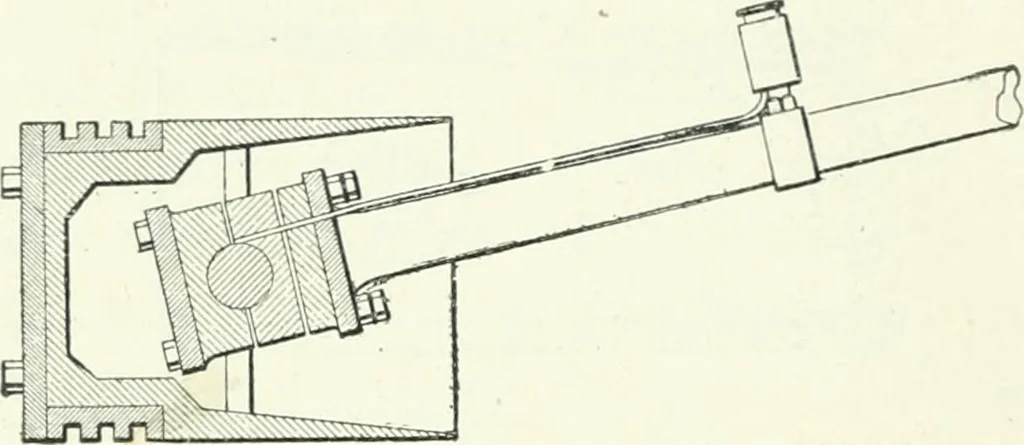

is difficult, is theconnection with the piston-rod (Fig. 21). It is im-portant that the bearing at the piston-pin be formed oftwo parts which can be adjusted to take up the wxar.The pin itself should be of case-hardened steel. Forlarge engines, some manufacturers have apparentlyabandoned the… … Fig. 21.—Piston with lubricated pin. to secure the pin by means of a single screw in one ofthe flanges, fitting it by pressure against the oppositeboss. The use of wedges or of clamping-screws, in-troduced from without the piston to hold the pin,should be avoided. It may happen that the wedgeswill…
