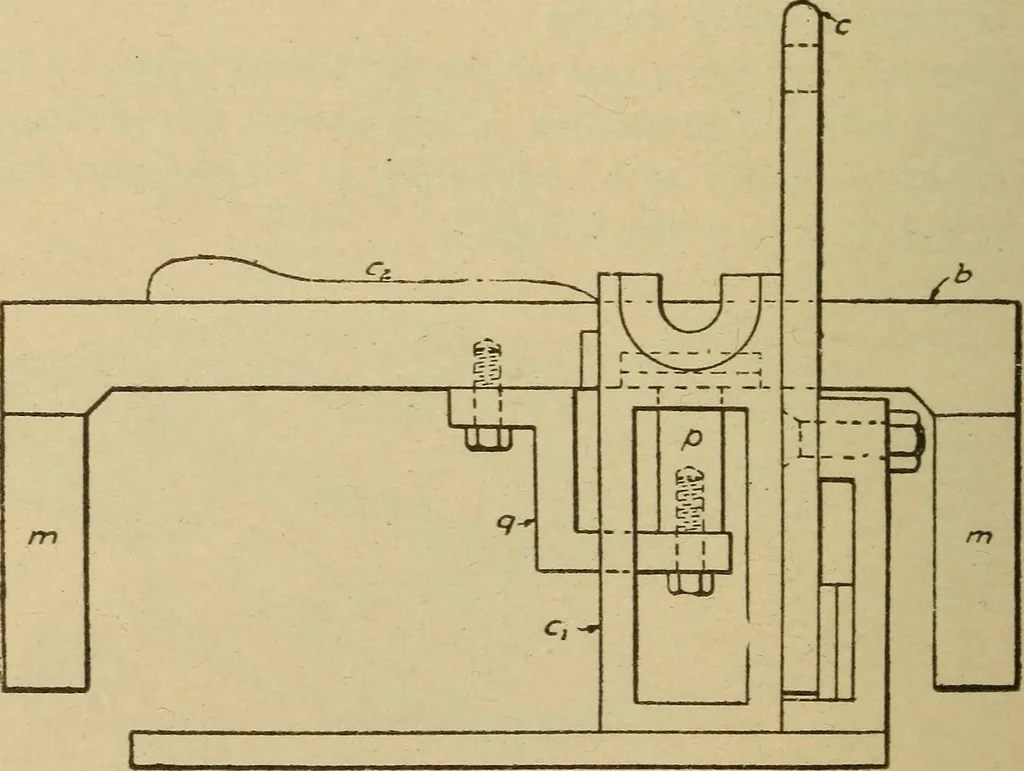

Fig. 350. Core Box for Pattcm, Fig. 349 be lowered, dra\\ang and stripping the patterns cc and Ci throughthe stripping plate. The links j and ji extend the length of the … Fig. 351. Nowel End Elevation of Drag Machine machine, conecting vnth. the four patterns. The recess o is strippedwith a stool p, Figs, 351 and 857. These stools and the yoke q, PATTERN MAKING 203 Figs. 347 and 356, upon which they are attached, are bolted to theunderside of the stripping plate, as…
