The modern gas tractor, its construction, utility, operation and repair; a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction of all parts, their installation and adjustment as well as practical application of tractors in the field (1914)
Pagé, Victor Wilfred, 1885-1947 · New York : Norman W. Henley · leaf 295

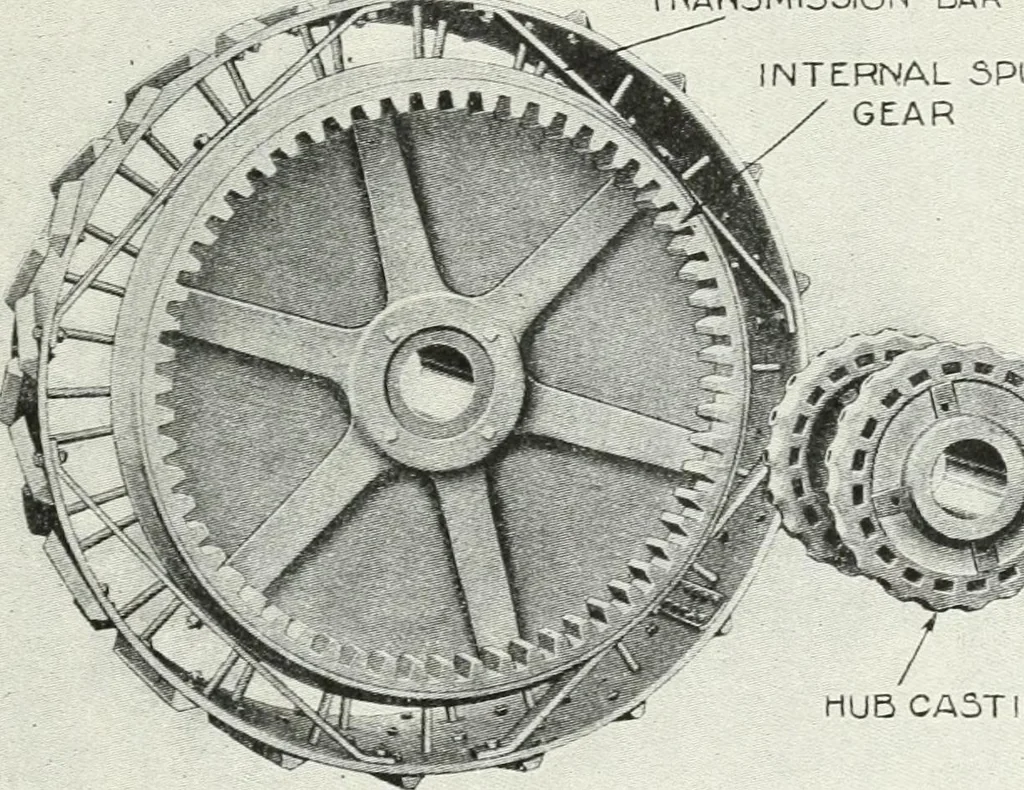

The wheel at Fig. 122is practically the same in construction, except that the The Modern Gas Tractor 297 driving gear is an internal spur form and has spokescast with the gear rim. The casting emplojed for thehub is also shown. The holes in the outer periphery-are used to pass the spokes through… … HUB CASTING Fig. 122.—Tractor Driving Wheel and Hub Casting. NoteInternal Spur Drive Gear and Method of Attaching toHub and Rim. On some forms of tractors it is considered desirableto reduce the shock of driving as much as possible byconnecting the driving gear to the wheel rim by trans-mission…
Farm engines · Internal combustion engines
