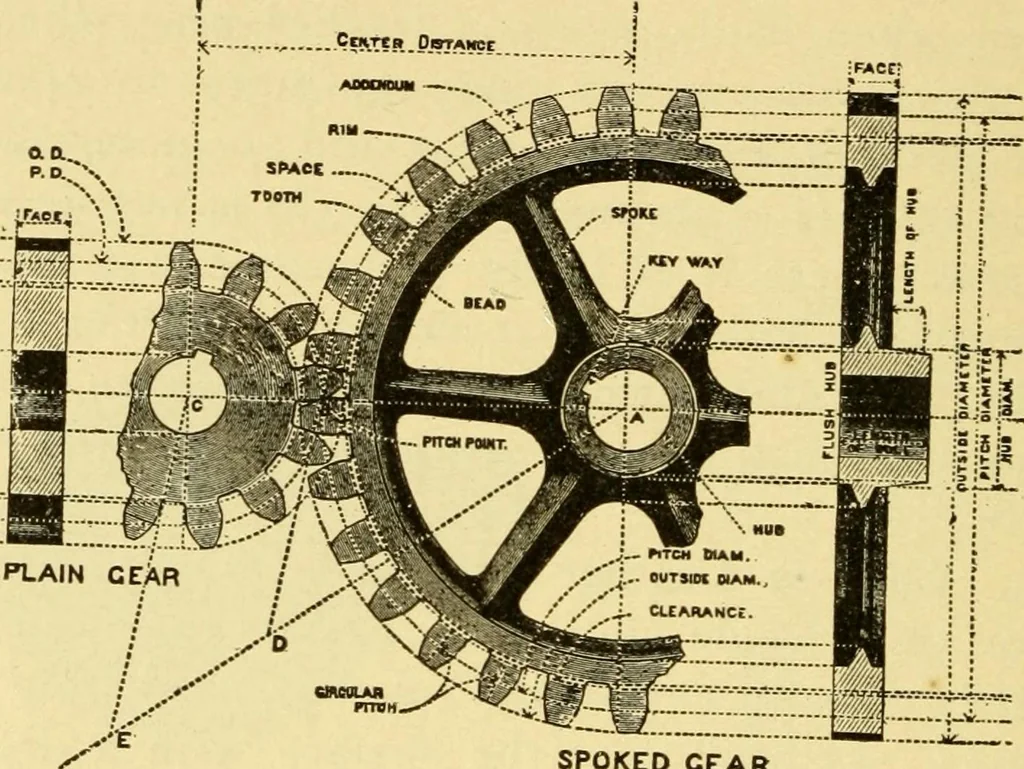

ine drawn around the outside tips of the teeth. The pitch diameter is taken on a circle through thepoint where the teeth roll into working contact withthose of another wheel. 352 The Gasoline Engine on the FaRxM Diameter, applied to gearing, always means pitchdiameter unless otherwise specified.… … SPOKED GEAR Fig. ii8.-IIlustrating Terms Used In Ordering Spur GearWheels. The pitch of any standard wheel may be obtainedfrom the outside diameter (which is more convenientto measure) by adding 2 to the actual number ofteeth and dividing by the outside diameter. From thisthe pitch diameter may be…
