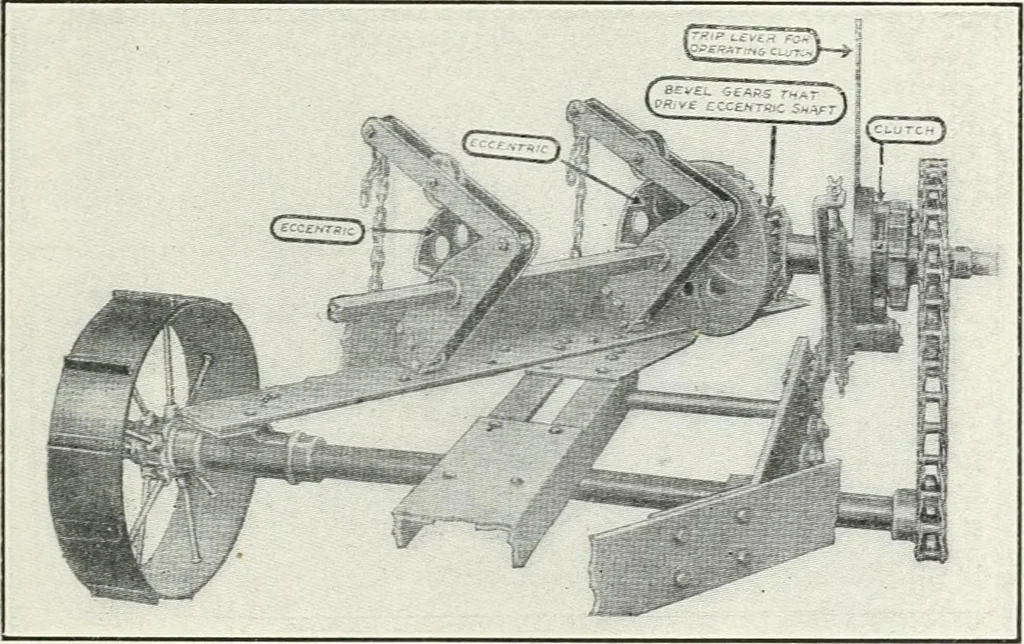

The Modern Gas Tractor 405 positive drive is mounted beneath the plough frame anddrives a cross shaft by means of chain and sprocketconnection. A series of pivoted bellcrank arms towhich the ploughshare beams are attached by chainsare utilized in lifting them. The method of operationis simple. A… … Fig. 174.—View Showing Mechanism of Avery Self Lift Plough. shaft. As the gears turn, the eccentrics pass underthe rollers in the plough lifting cranks, and in this man-ner the ploughs are lifted directly by means of powerinstead of by the usual hand lever. Many traction engine operators,…
