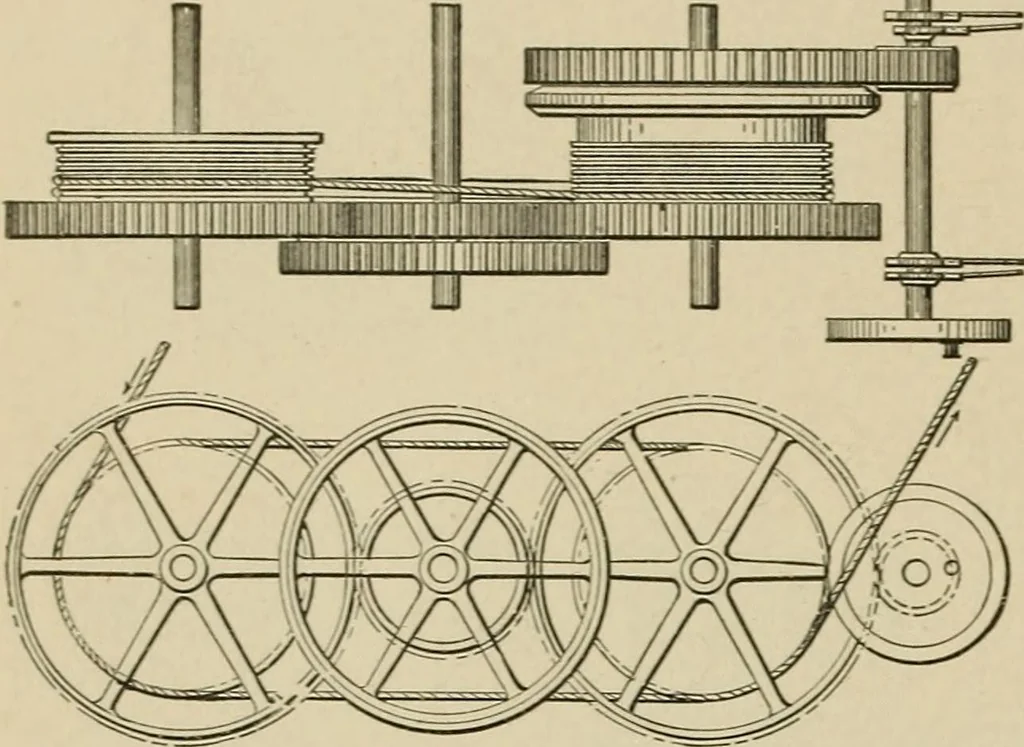

1259c. GARBAGE FURNACE.—Plan and elevation. The garbagefalls through openings at the topand is divided on a curved partinghearth and dried by the heat of thefire on the grate and then slides onto the grate to be burned. Coalmay also be used to facilitate theburning. Plan and vertical section. JRCEO… … HAULAGE.—Twogrooved drumswith gears and anintermediate b a 1 -ance gear and fly-wheel. The driv-ing shaft geared tothe hauling drum:brake wheel andband on the samedrum shaft. Shaftsare horizontal. Planand side view. - 1259-. AIR BLAST FOR ^lOMXG COAL, slack and dust. An engine and directconnected…
