Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing (1921)

International Correspondence Schools · Scranton, PA : International Textbook Co. · leaf 252

An illustration from Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing, 1921, leaf 252

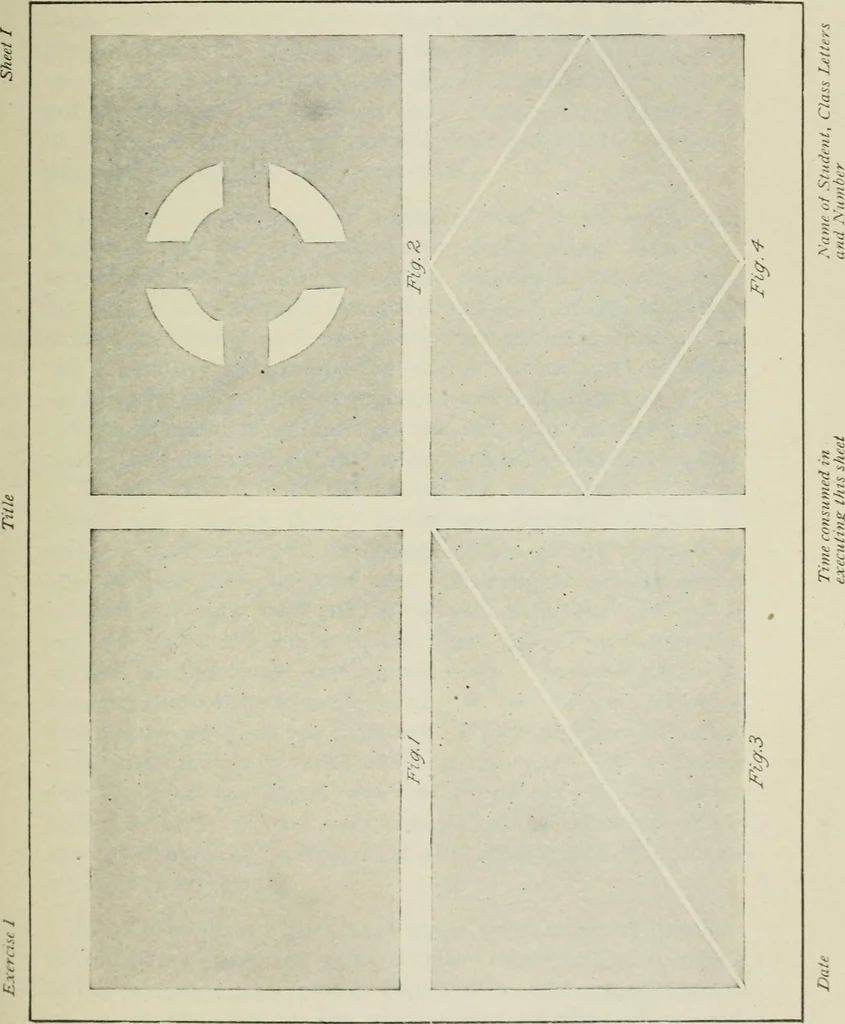

it in the heat, forthis will probably cause the paste to crack loose from thedrawing board. The paper will at first look wrinkled andspoiled, but will soon dry and be perfectly smooth. EXERCISE I, TITLE: FI.AT WASHES 3. Exercise I, Sheet I.—Within the border line, 8 in.X 11 in., construct four… … §4 WASH WORK AND BRUSH DRAWING 6 ^-inch vertical and horizontal bars, as shown. In the lowerleft-hand rectangle, Fig. 3, draw two parallel diagonal linesfrom corner to corner about re inch apart, and in Fig. 4, drawparallel diagonals -i-g inch apart from the center of each sideas shown. These…

Architectural drawing · Geometrical drawing · Brush drawing · Perspective · Projection · Decoration and ornament

Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
