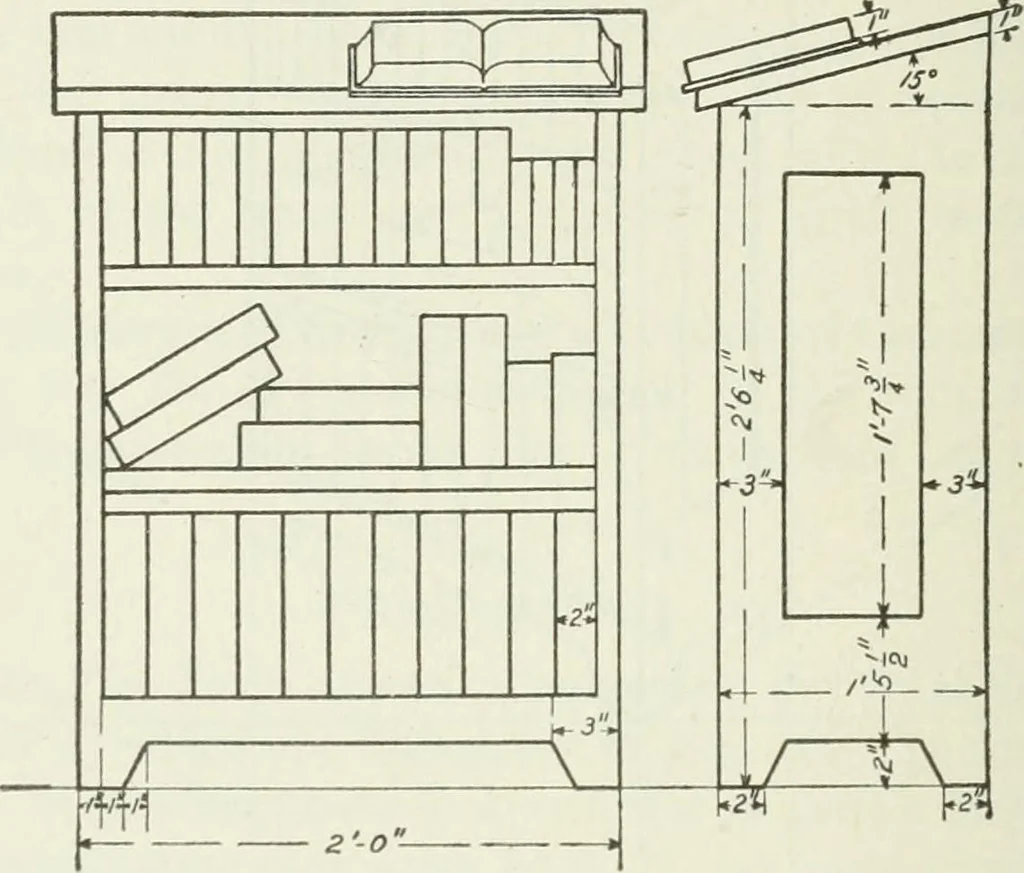

ale, the heights of the lowershelves at k and the thickness and position of the two othershelves at / and ;;z. These are projected across the casetoward F^, and located in their proper places. The inclina-tion of the top and its projection over the sides is found bydrawing the line from V^ through… … Fig. 55 If, therefore, a line is drawn from M^ through c until it inter-sects with the side of the case prolonged, as from a to g, itwill mark this projection. A line drawn through g toward Vwill show the projection of the top over the front of thecase, and where this line intersects, the line ao…
