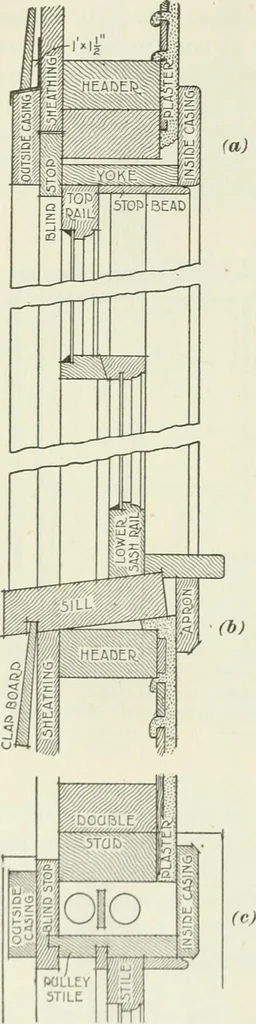

Fig. 9 40. A cheaper form of window, differing principally inthe treatment of the window head, is shown in Fig. 10. Here, 40 ARCHITECTURAL DRAWING §7 … Fio, 10 the clapboards are brought downto the top of the outside casing asbefore, but the crown member isleft off, and the flashing is broughtdown and turned over the top ofthe outside casing. The sill is thesame thickness throughout, but thelower edge of the window sash isnot beveled off to make a…
