Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing (1921)

International Correspondence Schools · Scranton, PA : International Textbook Co. · leaf 468

An illustration from Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing, 1921, leaf 468

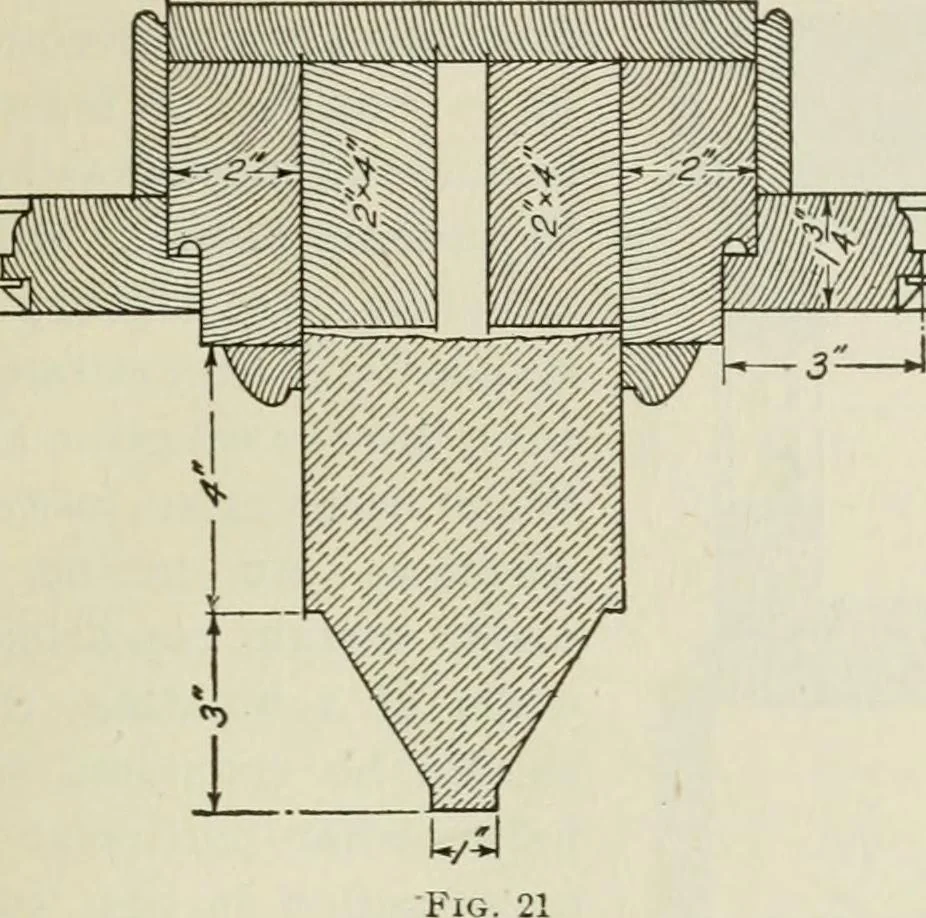

§7 ARCHITECTURAL DRAWING 47 then the mullion can be molded somewhat as shown in Fig. 18,while the sides of the opening can be treated as in Fig. 19. … 45. Casement Windows.—Sometimes, it is desirea tohave a window hinged at the top or sides so as to swingoutwards or inwards. Sucha window is called a case-ment ■windo^v, and isconstructed as shown inFig. 20. These windowsare very difficult to makeweather-tight, as drivingrain will work around…
