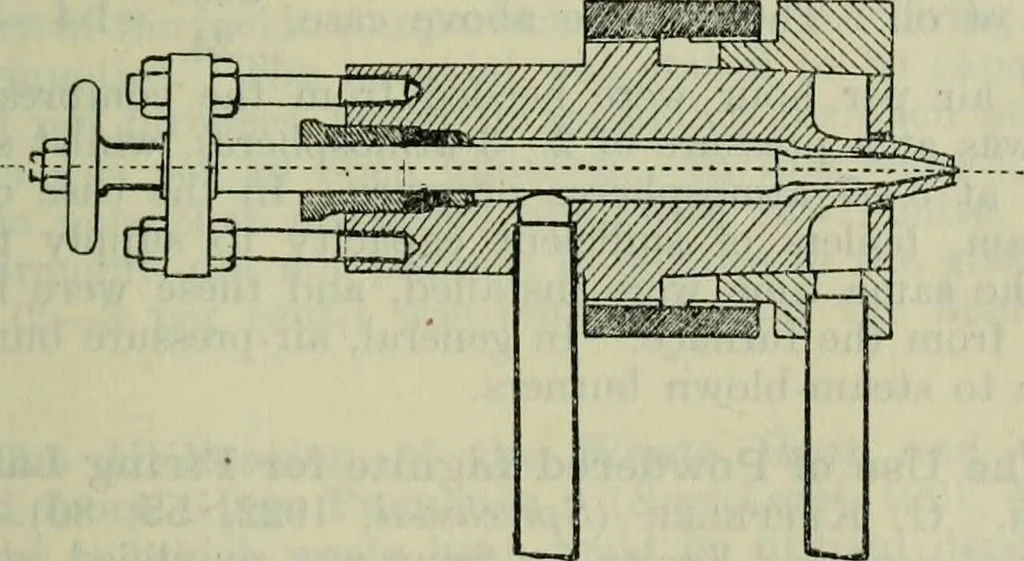

SltAMFig. 134. easily built in or removed. Fig. 135 illustrates a form of atomisersuitable for either air or steam. The above two burners had theadvantage that the deposition of carbon and choking up of thenozzle was prevented. It was usual to change the burner aftereight days, but one of the… … Fig. 135. Schmidt pattern, working under an air pressure equal to 360 mm.of water, were quite suitable for lehrs or small melting furnaces.Pre-heating of the secondary air was important, and the authorrecommended an arrangement as indicated in Fig. 136 for a tankfurnace with atomiser, recuperation…
Glass
