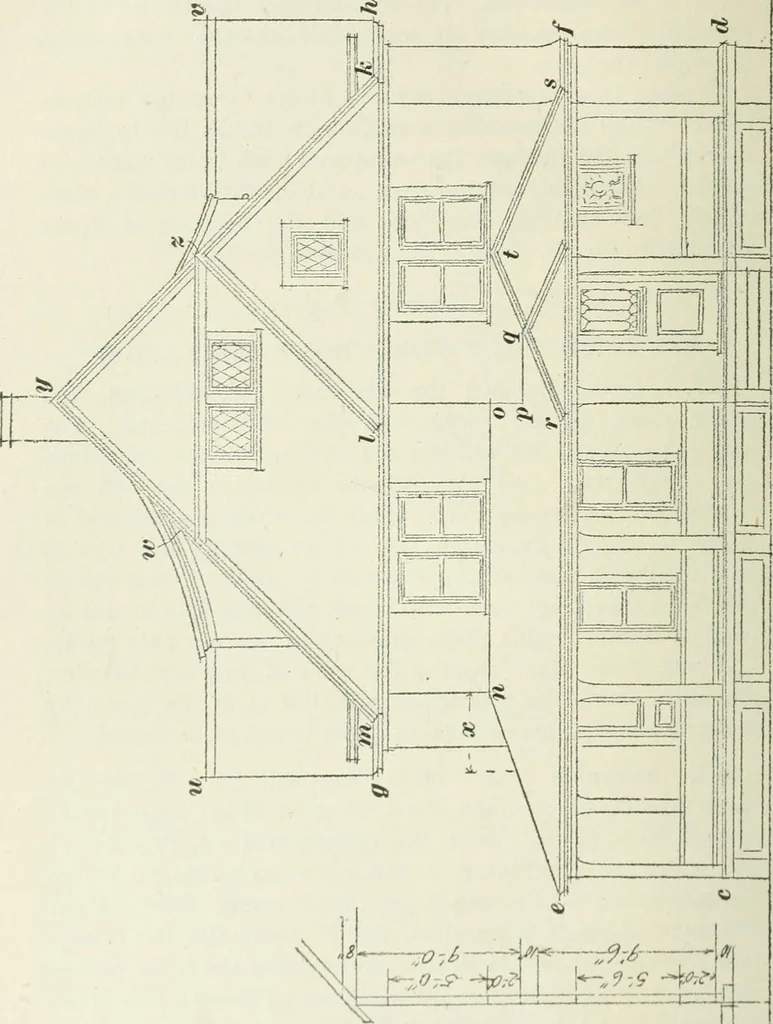

line ab, Fig. 34, \above the lower border, and thus represent the grade line ofthe lot, which in this case is practically level. Now, on theleft edge of the drawing sheet and \ within the left borderline, a section should be drawn representing the front wall ofthe house on a line through the… … r 08 §7 ARCHITECTURAL DRAWING 69 the water-table, so that these details can be regularly pro-jected into the front elevation when required. 64. The details of eave construction and the gutters forcarrying ofif the water have already been studied in Exer-cise II, while the general character of the…
