Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing (1921)
International Correspondence Schools · Scranton, PA : International Textbook Co. · leaf 533

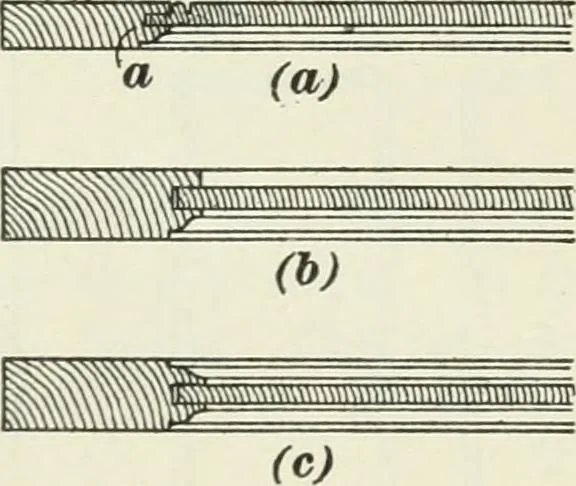

with five horizontal panels, and in Fig. 52, a design withpanels of three different sizes. Doors with one large, singlepanel are used largely in colonial work, as are also theforms shown in Figs. 50 and 51. 77. The thickness of doors varies according to theirquality and purpose. For small doors,… … (e) (f) Fig. 53 a simple door f thick with a solid panel. The panel is heldin a groove cut in the stile, or rail, as shown at a. The stileis molded on one side, and a bead on the panel makes thefinish on the other. This is suitable for a dresser, or cup-board door that is to show on both sides. At…
