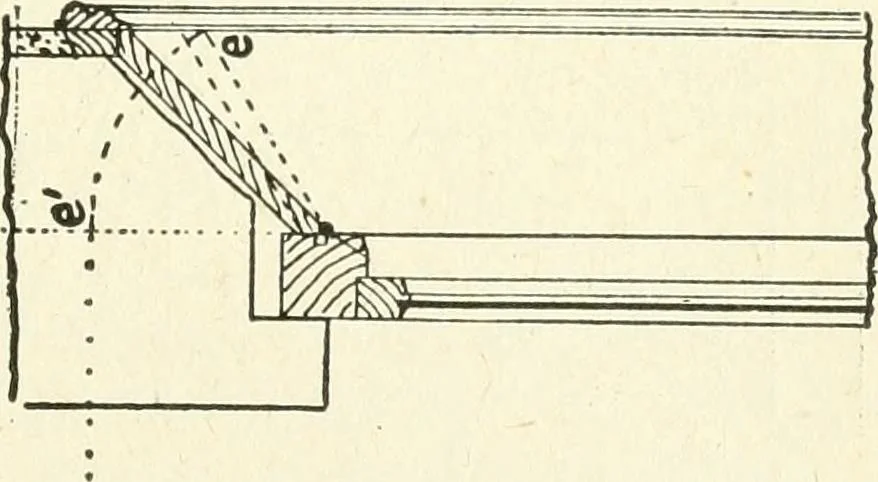

Fig. 44. be revolved upon one of its edges until it is parallelwith the front, when its real shape can be seen. Thisoperation is shown in the diagram on the right-hand … Fig. 45. half of the plan and elevation. Draw the line a b, rep-resenting the face of the jamb in plan, at the desiredangle. Project the edges into the elevation, and in-tersect them b}^ lines c d, projected from the top andbottom edges of the soffit in section. This will give theprojection of the…
