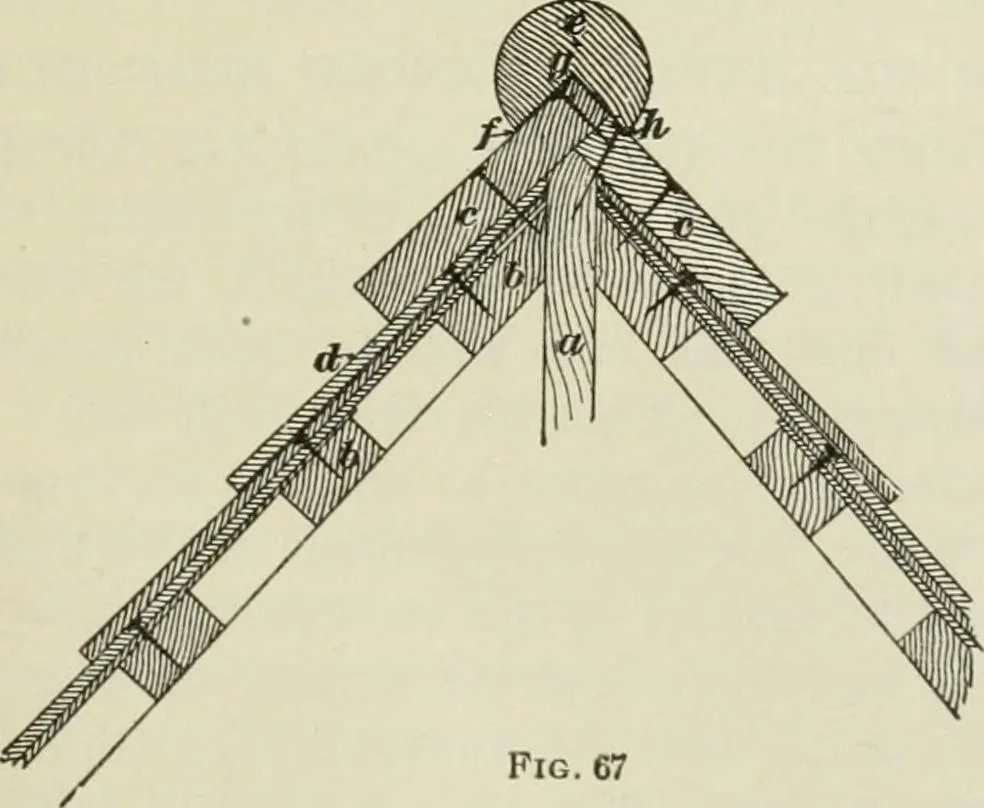

FiG. 66 ters. A collar beam, or tie, should connect each pair, in orderto prevent them from spreading under the weight, unless thefloorbeams or ceiling beams serve this purpose. After theroof is complete, it is necessary to treat the apex in somemanner that will keep out water. Fig. 66 shows a… … Fig. 67 where sheet metal is carried over the ridge and serves toform a water-tight drain, and another method is shown inFig. 67, where a turned wooden roll is laid over the angle, 100 ARCHITECTURAL DRAWING §7 85. Liatliing.—In nearly every case, a wall that is tobe plastered requires some form of…
