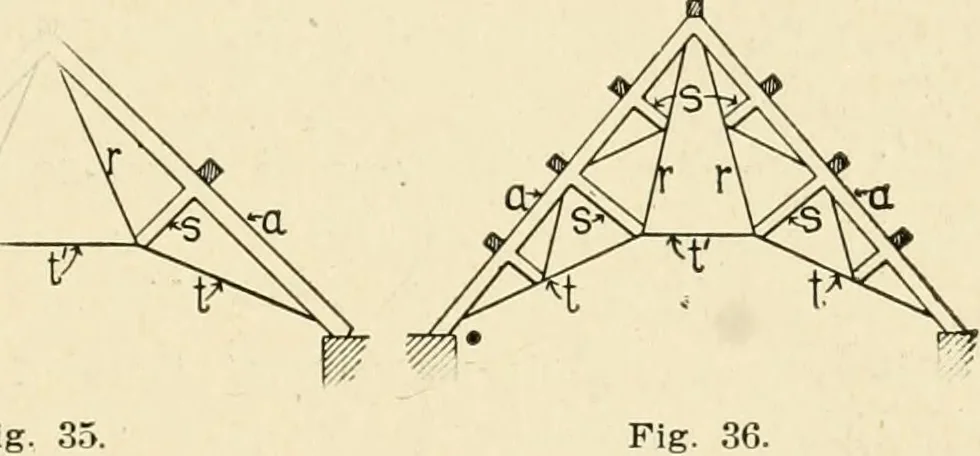

Fig. 33. Fig. 34. of the rafters, the portion of the tie t also acts as a belly-rod to sus-tain the thi f the struts, which act in the same way as thepost in a belly-rod truss. The purlins should always be placed op-posite the braces s s. … Fig. 35. When built of wood this type of truss is most commonly classedwith the scissor russ, but is also sometimes referred to as atrussed rafter r of, as it really consists of two trus el raftersheld in position bv the ties t and r. as shown in Figf. 37, ,nd theruss could be built in that way,…
