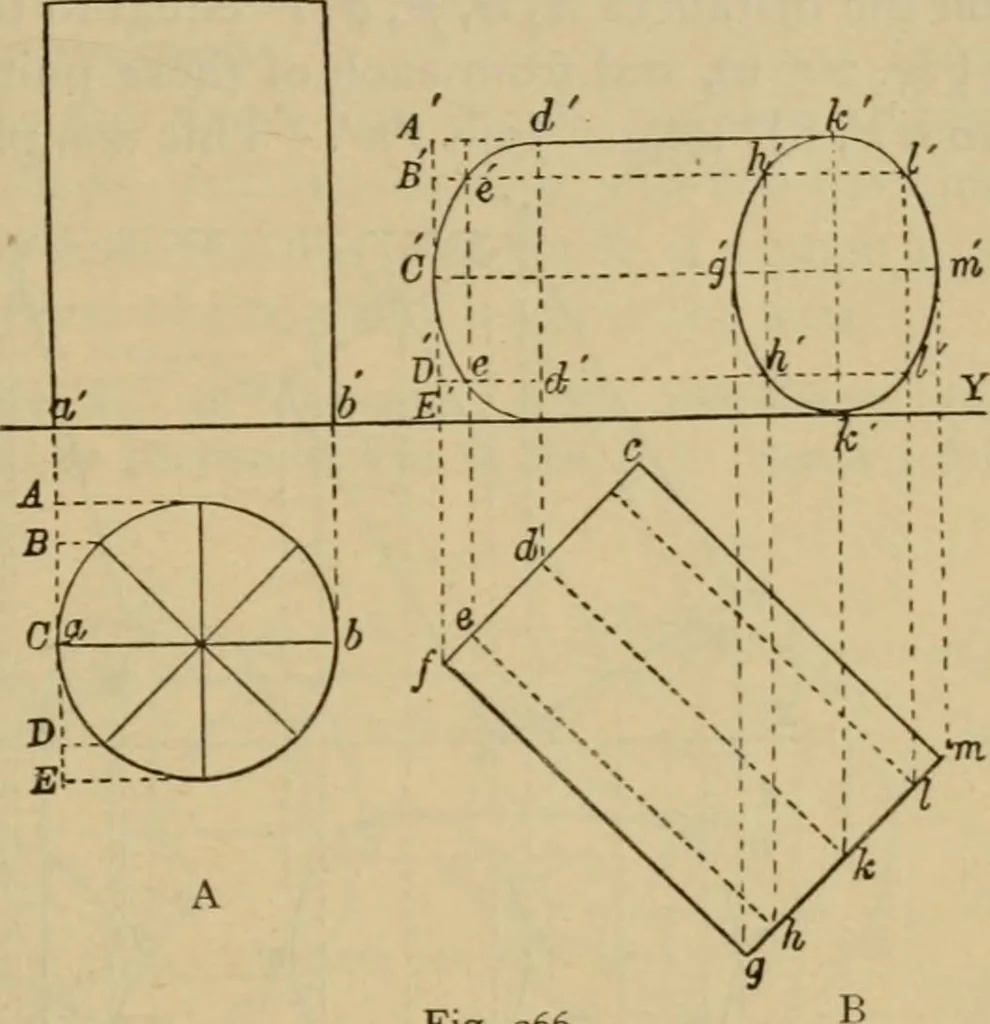

al to the distancesA, B, C, D, E (Fig. 266 a), and from these points draw hues parallelto c?n. This completes the plan. Draw a line from / perpendicular to XY, and produce itabove the ground line. Set off the distances E, D, C, B, A onthis line, equal to the distances E, D, C, B, A (Fig. 266 a),… … Fig. 266. ISO GEOMETRICAL DRAWING AND DESIGN. 205. To project the same solid, resting on its edge, with its baseinclined at an ang-le of 30° with the H.P., its axis being parallelto the v.p. Scale ^ full size. Fig. 267 A. Draw XY, and at any point n upon it draw the line nrat an angle of 30° with…
