Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 261

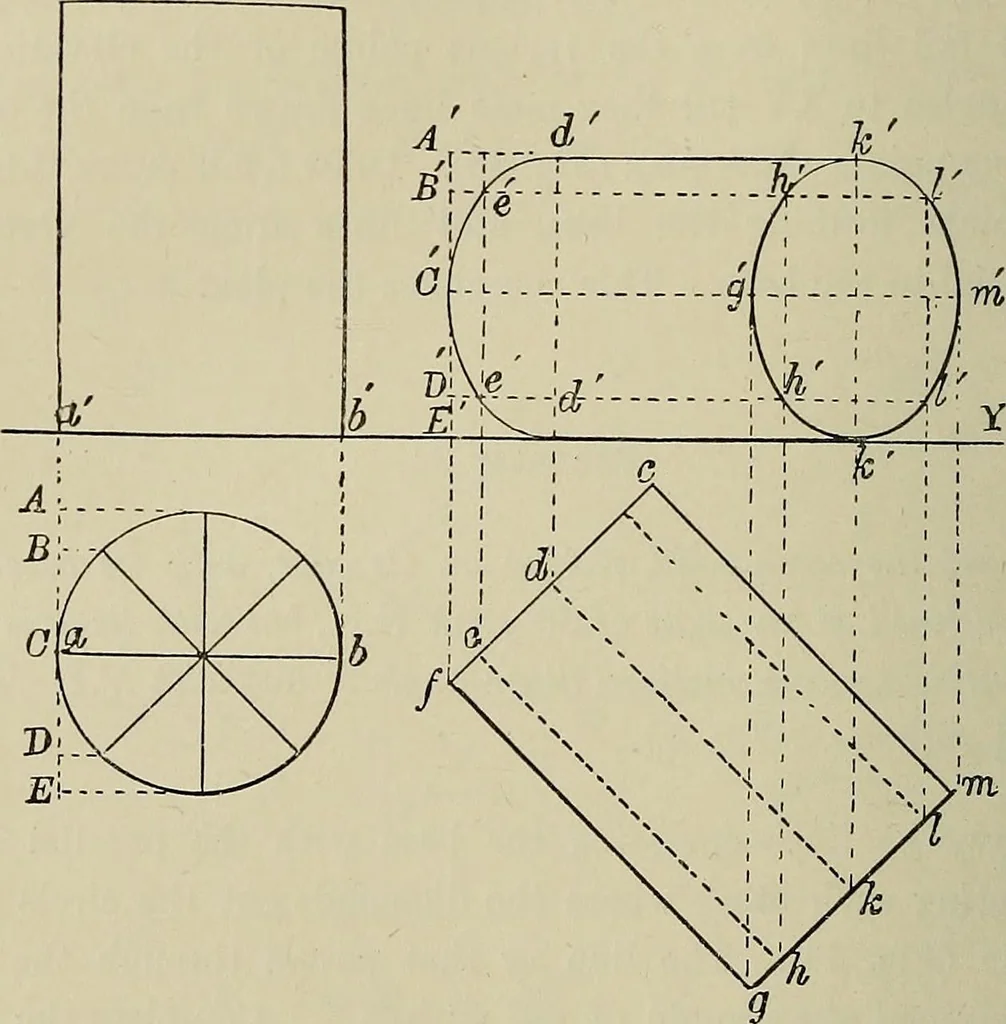

ts of the elevation (Fig. 44). Complete the elevation asshown. CYLINDEES. In the examples here given, only eight points of the circularbase are projected, to save confusion of lines; but any number ofpoints can be found in the same manner. 240 SOLID GEOMETRY Problem 35. To project a cylinder, 5i in… … Fis. 46. Fig. 47. 1) perpendicular to XY, and produce them 8^ above XY. Jointhe tops of these lines to complete the cylinder. Peoblem 36. To project the same cylinder, lying on its side on the H.P., ivith itsaxis inclined at an angle o/45° with the V.P. Scale ^fullsize. Pig. 47. Draw four diameters…
Geometrical drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
