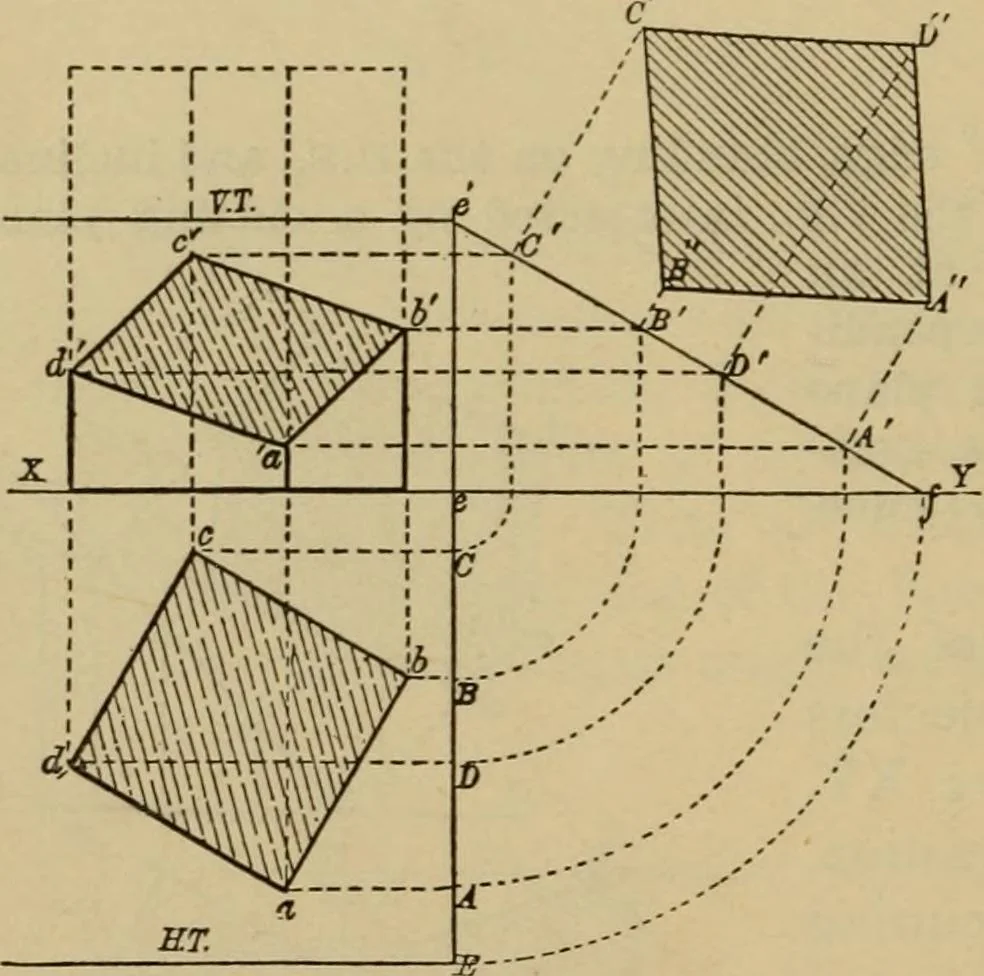

ing on its base on the H.P., with its longer edgesparallel to the v. p., and one of its sides inclined to the v. p. atan angle of 60^ Intersect the prism with a plane parallel to XY, and inclined tothe H.P. at an angleof 30. Scale J^ fullsize. Fig. 302. Project the prism(Prob. 171). Find thetraces… … Fig. 302. is the angle the cutting plane forms with the H.P. Draw lines from each point in the plan perpendicular to ^E,and meeting it in the points C, B, D, A. With e as centre, andeach of these points as radii, draw arcs; and where they meet XYdraw perpendiculars till they meet ^yin the points C,…
