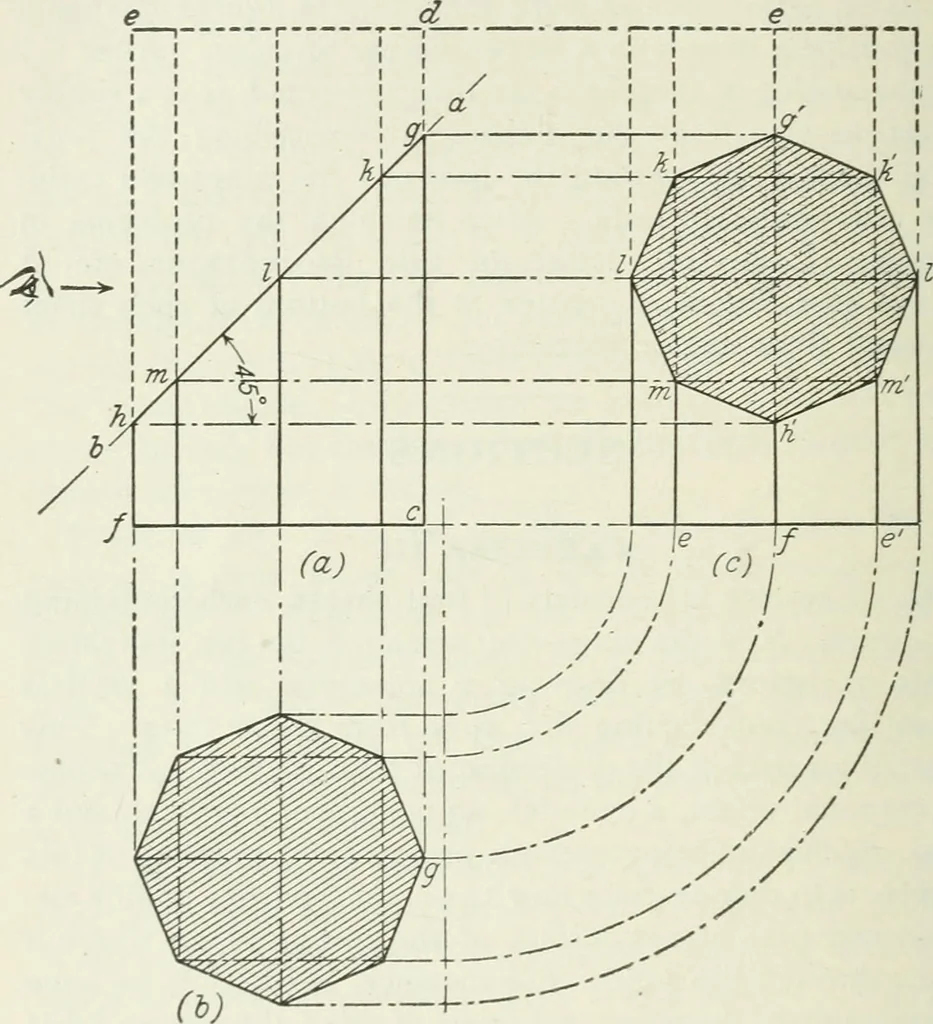

the plane a b thatpasses through it entering one corner ^ and passing out theother corner h. The corner of the prism where the plane a ^first enters is shown in the front elevation {a) at cdva theplan at^, and in the side elevation at ef. Problem 19. Exercise III, Sheet I.—Draw the plan of theprism… … Date Time consunifd inexecuting this sheet Name of Student, Class Lettersand Number §2 PROJECTION DRAWING 25 horizontal center line of the sheet. Now draw the plane a bat an angle of 45° cutting both sides of the prism as shown,Exercise III, Sheet I. Where this plane passes through the successive…
