Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 251

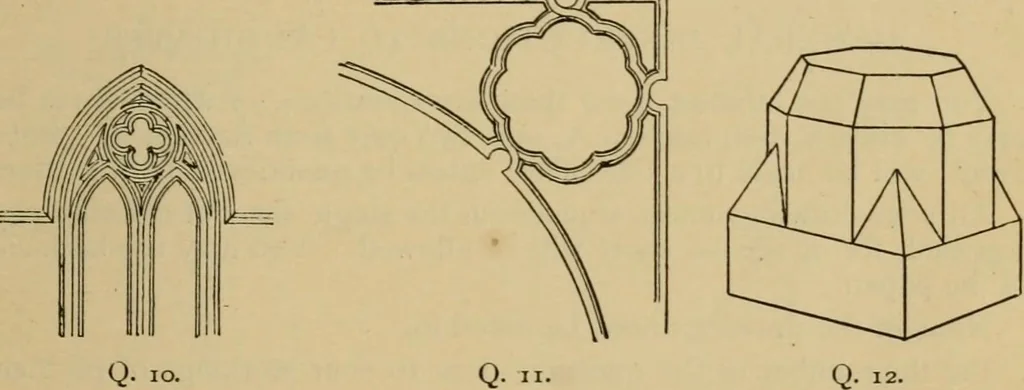

Q. 7. ■■m--> 1 /^ r ^ J \ Q. 8. ^ Y Q. 9. … 10. How would you draw the leading lines of the window tracerygiven (Q. 10)? (N. B.—Do not try to copy the whole figure, but onlyclearly indicate your method.) 11. Show how to set out the given figure (Q. 11). 12. Make an approximate sketch plan or elevation (but not both) ofthe given column base…
Geometrical drawing · Design · Drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
