Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 38

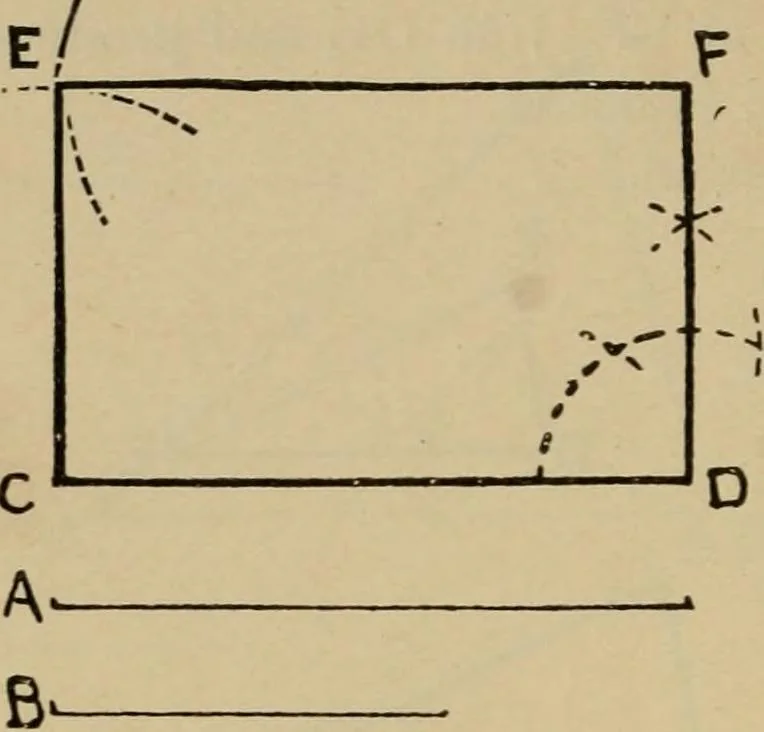

\-\E\ kl l^ig- 53 24 GEOMETRICAL DRAWING AND DESIGN. 27. To construct a rectangle with sides equal to given lines A and B. Draw the line CD equalto given line A. At D erecta perpendicular DF equal togiven line B. With C ascentre and radius equal toline B, and with F as centreand radius equal to… … F^~~
Geometrical drawing · Design · Drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
