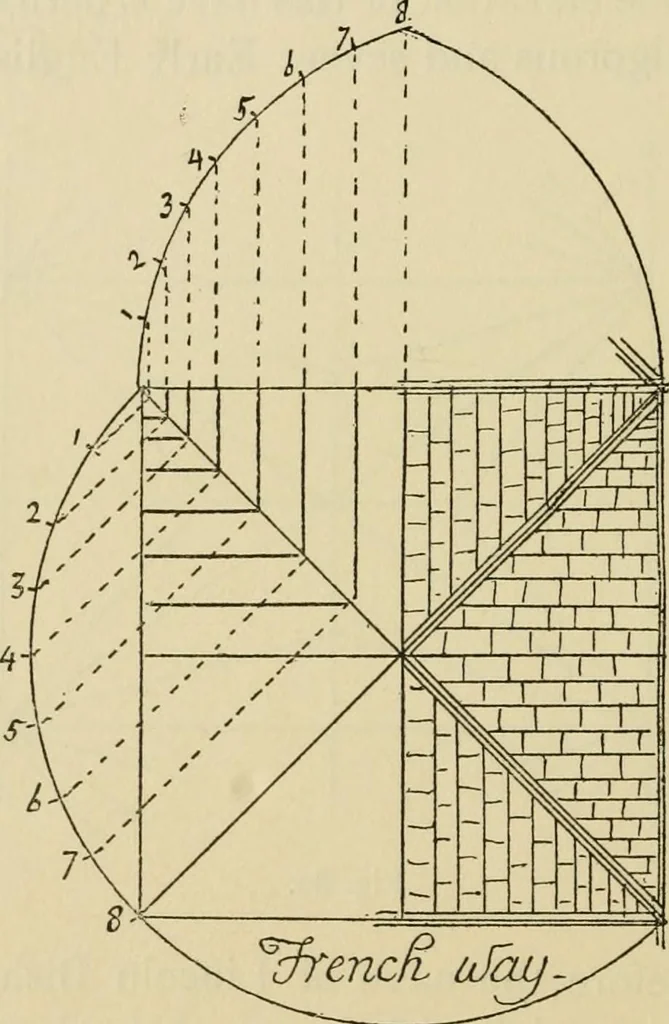

ting the ashlar-beds of the panel are 14—2 ChesterDe Lucysbuilding1204 212 EARLY ENGLISH [CH. XII Difference between French and English vaults The French vault laid in courses parallel to the ridge-lines; that is to say,in the longitudinal vault they are parallel to the axis ofthe church, and… … Fig. 90. the diagonal rib (Fig. 90). In English vaulting, on thecontrary, the beds of the ashlaring in the panels are laidsquare with a line more or less nearly bisecting thepanel, and they therefore meet at an obtuse angle againstthe diagonal rib (Fig. 91). In setting out a Frenchvault the…
