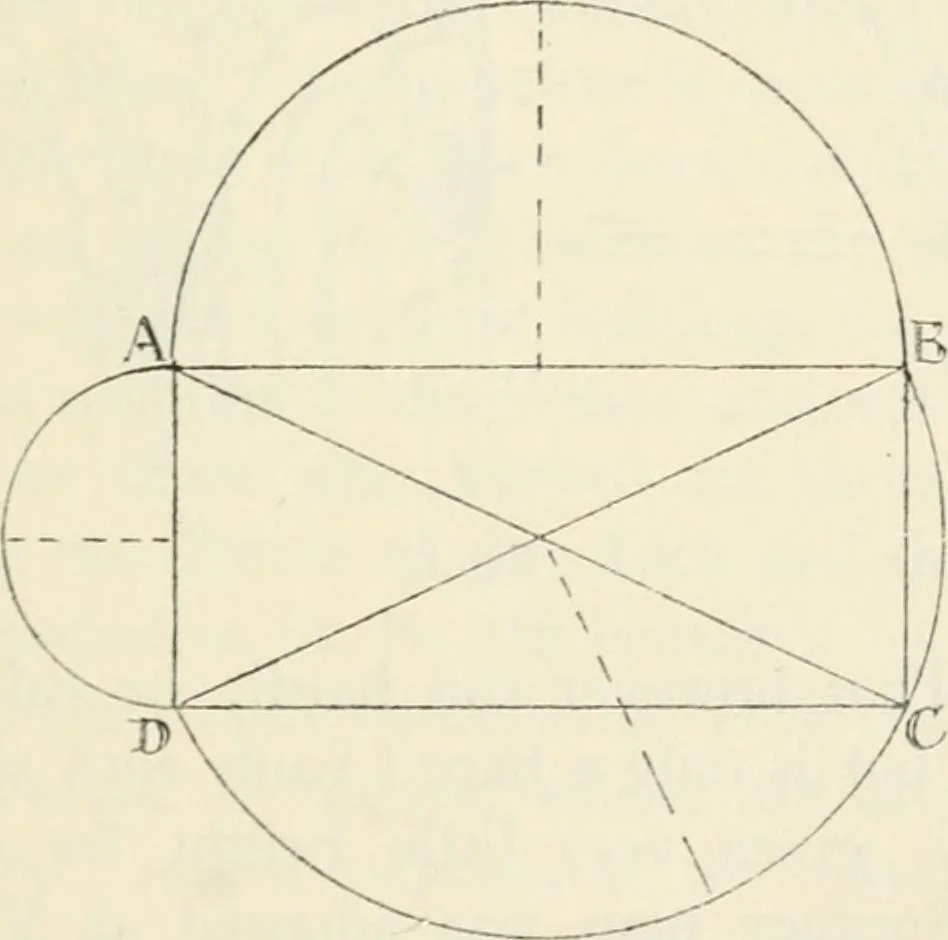

length, because if the reader has oncemastered it he will have a key to the full understandingof the later and more intricate problems of Gothicconstruction. CHAPTER III THE GOTHIC VAULT {continued) The scheme of S. Ambrogio is logical and complete Limita-tion of so far as it goes : but it requires… … Fig. 7-an oblong bay had still to be encountered, and also thatof raising the nave vaults high enough for a clerestory. An oblong bay is shown in Fig. 7. The lines AB Difficultyand DC represent the transverse arches dividing the an oblongbays: AD is the wall-arch: and AC and BD are the 32 THE…
