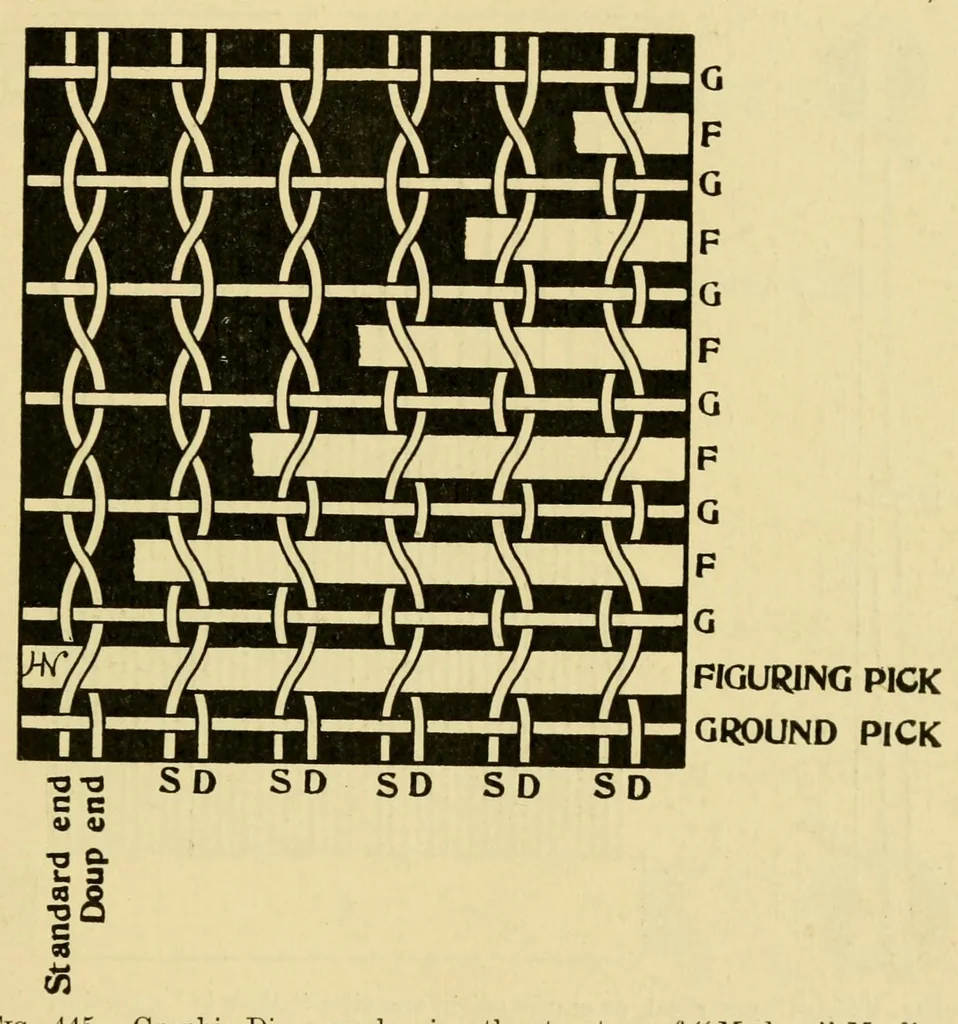

241 TISSUE, LAPPET AND SWIVEL FIGURING. Jacquard machine with eight rows of hooks from front to back) would be in the ratio of (48 ^ 2) - 24, to (84 -f 4) = 21, or ruled with eight squares by seven squares in each bar. Madras Muslin. § 120. Fig. 445 is a diagram showing the structure of that… … Fig. 445.— Graphic Diagram sliowing the structure of Madras" Muslin Fabrics. which the foundation texture is of gauze or cross-weaving. The diagram represents a fabric in which ground and figuring picks are inserted alternately, thereby requiring for its production a loom having a " pick-and-pick "…
