United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 84

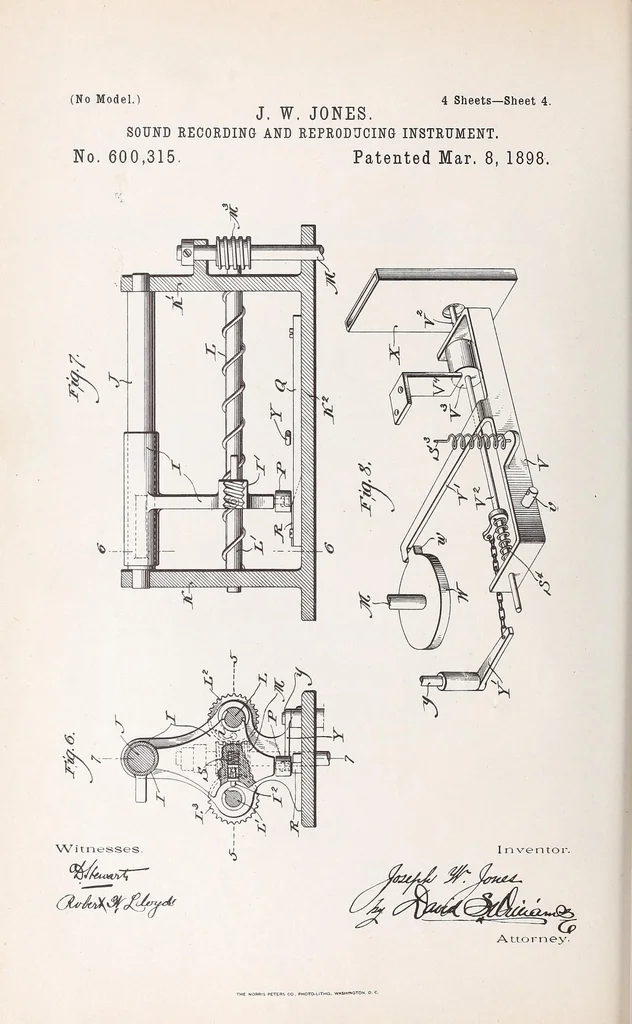

(No Model. 4 Sheets— Sheet 4. J. W. JONES. SOUND RECORDINa AND REPRODUCING INSTRUMENT. No. 600,315. Patented Mar. 8, 1898. Witnesses. . PHOTO-LITHO- WAiMINOTON, I
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 84](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten03unit-84-0.webp)
