[Graphophone patents] (1878)
United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 153
![An illustration from [Graphophone patents], 1878, leaf 153](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten07unit-153-122.webp)

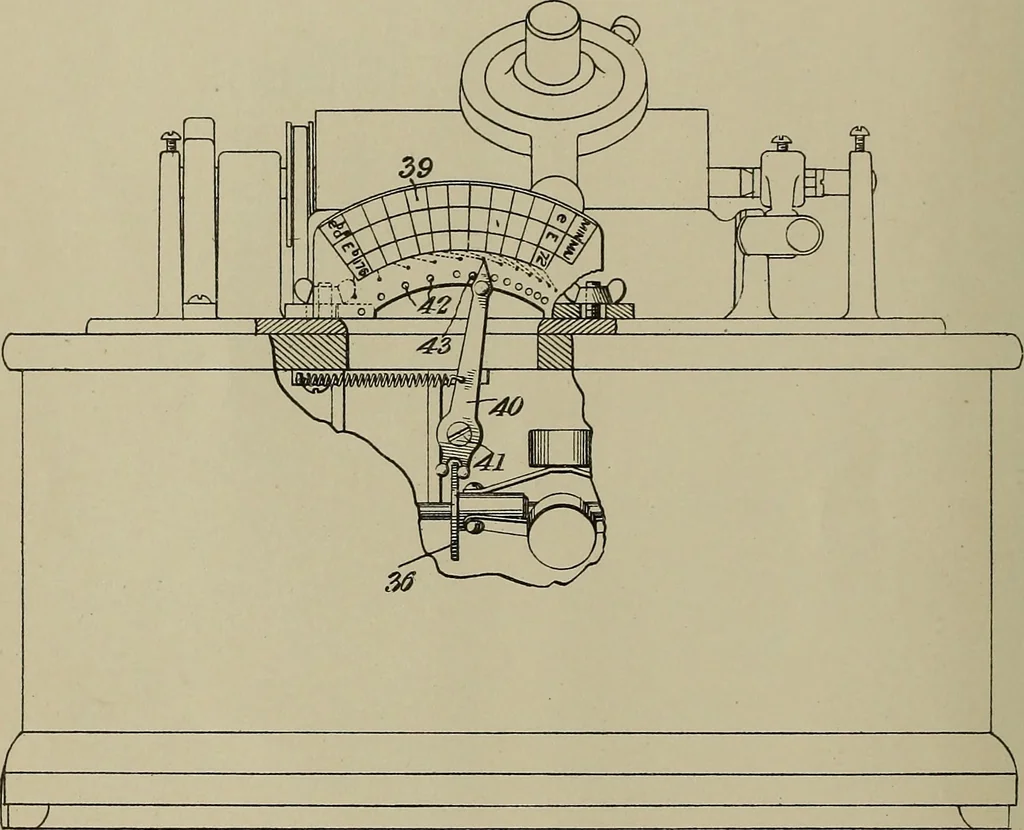

iyzZ4>& W^/OUtZ^ CharlesL. Cfiidholm i nventor Attorneys No. 814,941. PATENTED MAR. 13, 1906. C. L. CHISHOLM.PITCH INDICATING ATTACHMENT FOR SOUND REPRODUCING MACHINES. APPLICATION FILED AUG. 8, 1005. 5 SHEETS-SHEET 5 Jig. 10. … WitnessePhonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
