United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 227

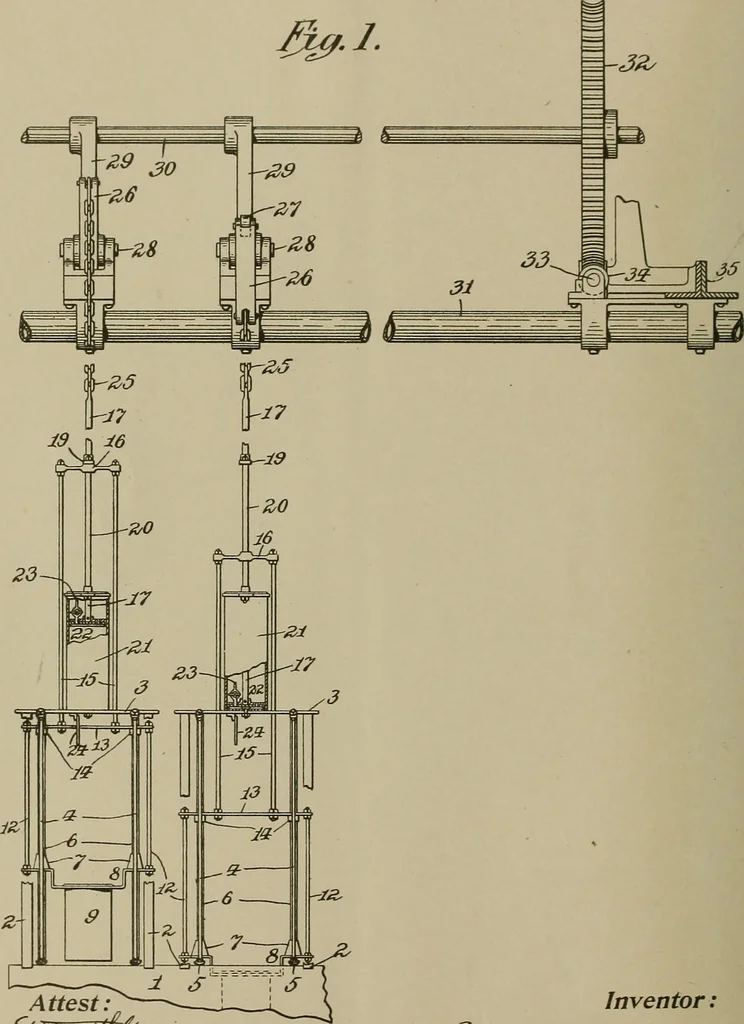

otch or recess in whichsaid pin or arm is entered, a shaft on whichthe rocking frame is mounted, and a wind-ing-drum carried by said shaft and having aflexible connection with the pendent arm ofthe carriage. In testimony that I claim the foregoing asmy own I have hereto affixed my signaturein the… … Attest by ° Inventor ^Atty. No. 817,831. PATENTED APR. 17, 1906.E. L. AIKEN.MOLDING APPARATUS. APPLICATION FIXED MAE. 23, 1905. 2 SHEETS-SHEET 2.
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 227](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten07unit-227-168.webp)
