Society of Glass Technology · [Sheffield] · leaf 582

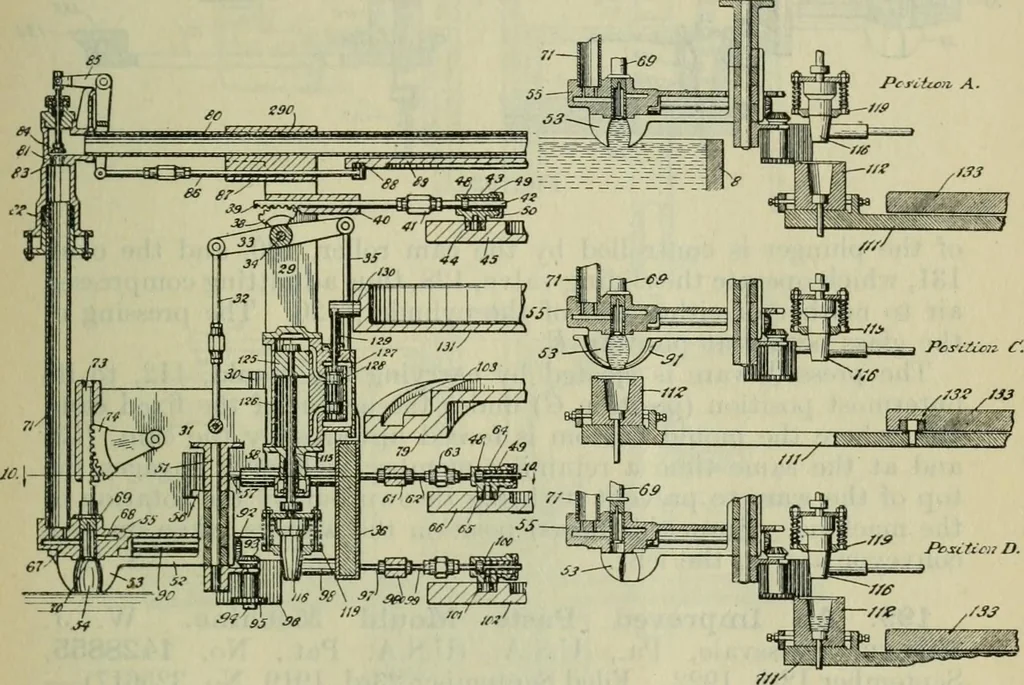

ssing it to shape, and ejecting the ware. The gathering is accomplished by the mould, 54, Fig. 91, dippinginto the molten glass under the action of a cam groove, 45, whichoperates a rack, 39, and this in turn, meshing with the segmentalrack, 38, causes a rocking of the lever, 33, to which the… … Fig. 91. port, 67. Thus the mould is completely filled with glass. As themould rises from the surface of the molten glass, shearing members,91, close around and underneath the mould mouth thus severingthe gathered glass from the remainder and retaining it in the mould,which is then raised…
Glass
