United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 447

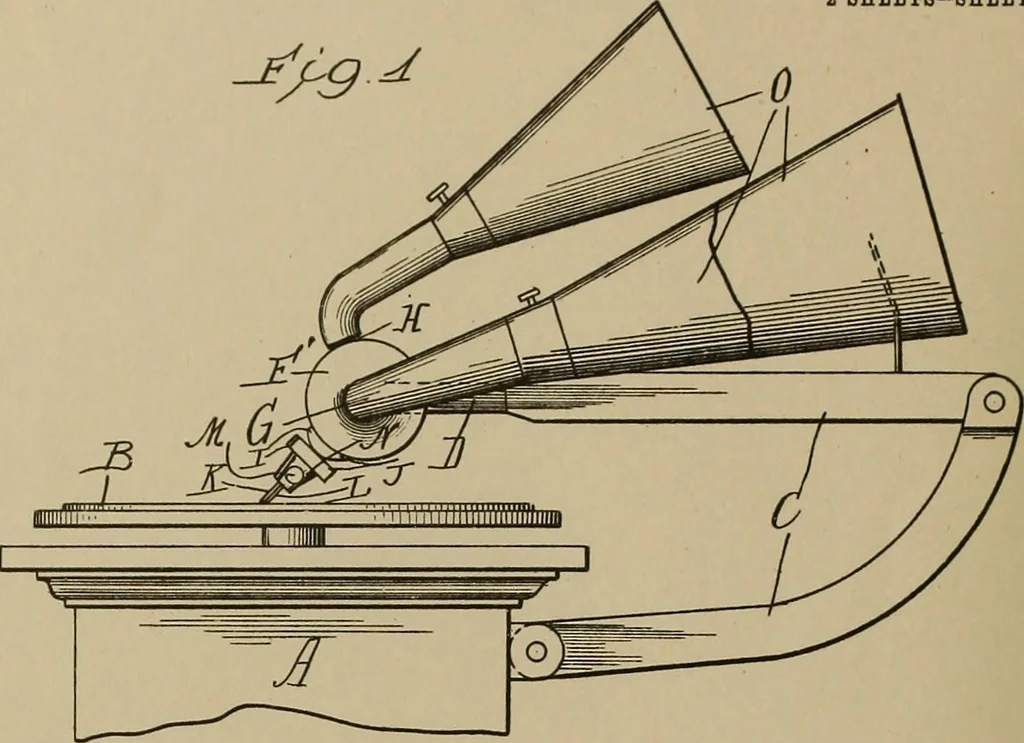

within asound-conveyer, a valve-plate adjustably 25mounted upon said fixed plate and means op-erable from without said conveyer for adjust-ing the position of said valve-plate relativelyto the opening in said fixed plate. In witness whereof I have hereunto sub- 30scribed my name in the presence of…
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 447](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten07unit-447-297.webp)
