United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 755

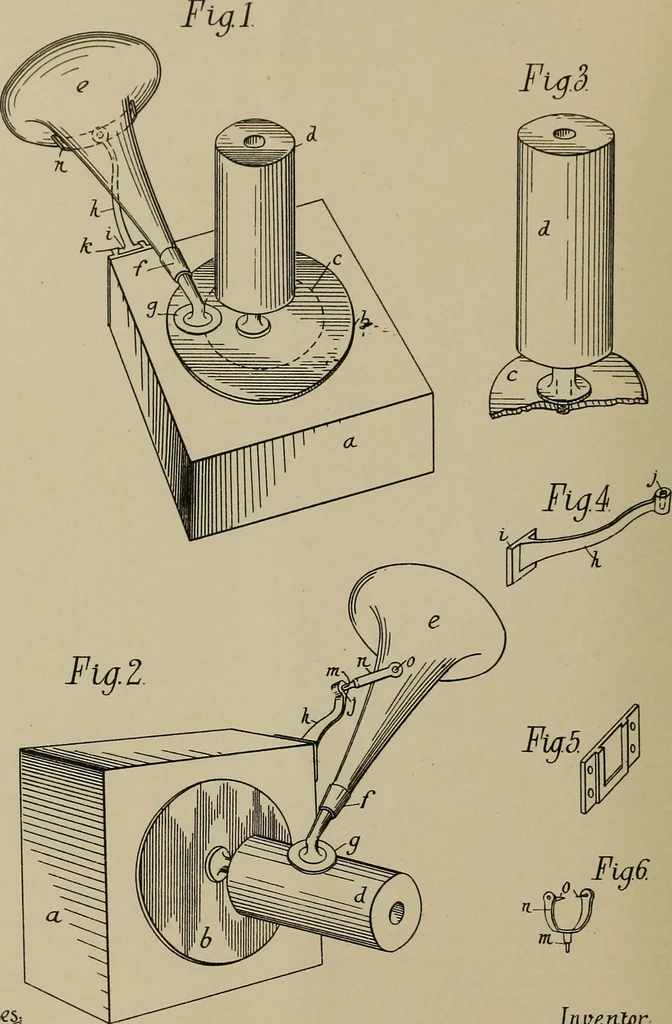

a born havinga sleeve mounted on said guide-spindle, aclaw-arm fast on the horn and engaging theEdison worm, a reproducer at the end of thehorn, and gear for driving the Edison wormfrom the turn-table, as set forth. In testimony whereof I have signed my name to this specification in the presence… … Jrwenlor: THE NORMS PETERS CO., WA5HINCTON, D. C. UNITED STATES PATENT OFFICE. CHARLES THOMAS, OF NEWTON ABBOT, ENGLAND.TALKING-MACHINE. IVo. 842,983. Specification of Letters Patent.Application filed May 14,1906, Serial No, 316,848, Patented Feb. 5, 1907. To all whom, it may concern: Be it known…
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
