Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 167

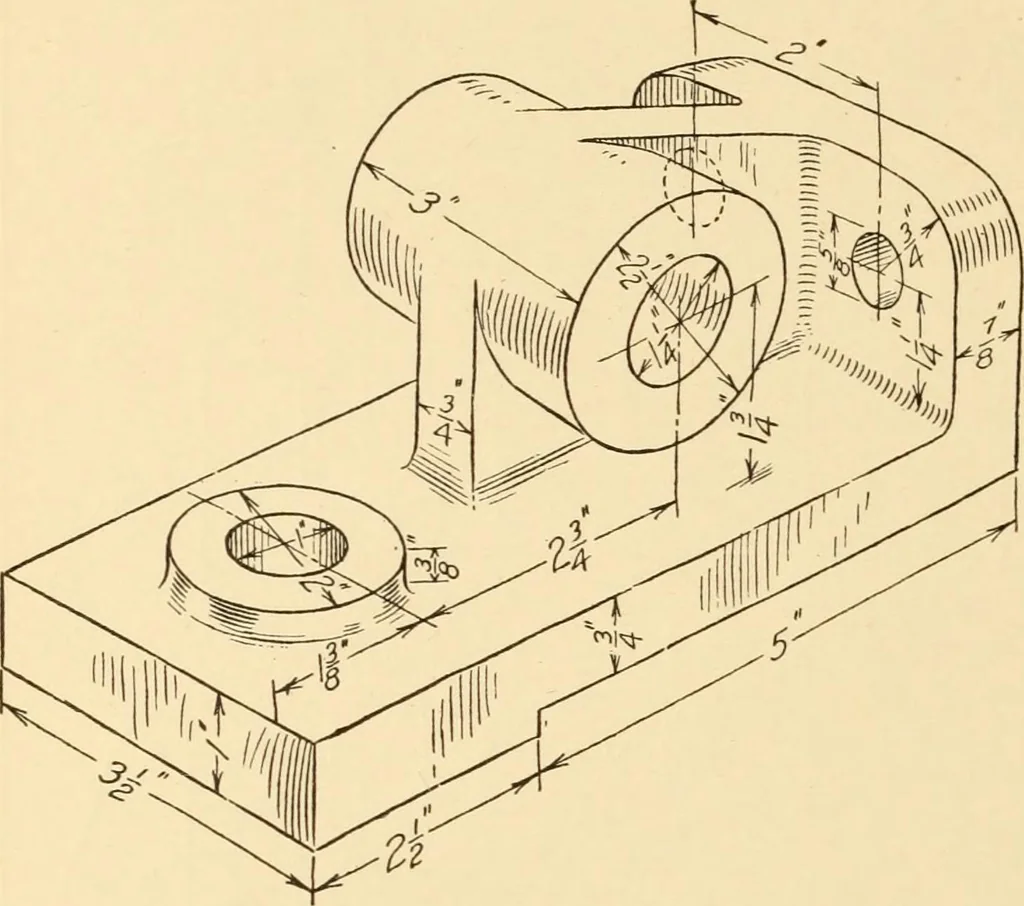

Fig. 255. Prob. 44. 156 MACHINE DRAWING … Fig. 256. Prob. 45. PROB. 47, Fig. 258.—Make a working drawing ofthe ADJUSTABLE GUIDE.Note the method of layingout the top view. Do notcopy the picture. PROB. 48, Fig. 259.—The front, top, and right endviewsof aCOLUMN GUIDEare shown. Draw the frontbottom and right end view asa section. PROB. 49,…
