United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 710

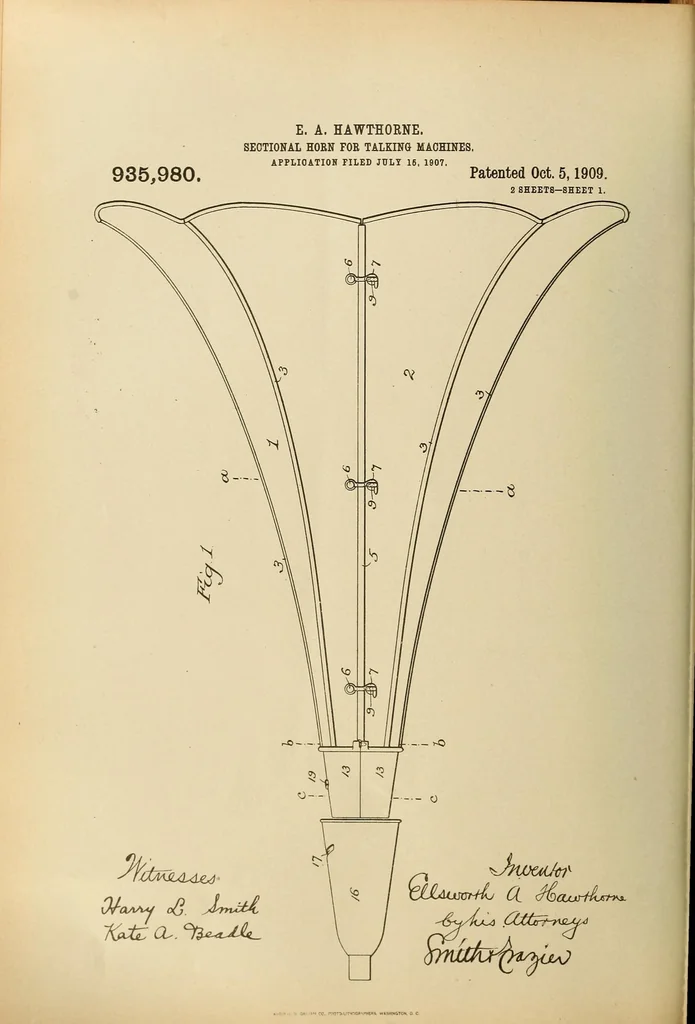

E. A. HAWTHORNE. SECTIONAL HOEN FOR TALKING MACHINES. APPLICATION PILED JULY 16, 1907. Patented Oct. 5, 1909. 935,980. 2 SHEETS-SHEET 1. ■■:■<-><»*«*•» WAUM&TCM. 0 C
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 710](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten09unit-710-0.webp)
