[Graphophone patents] (1878)
United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 417
![An illustration from [Graphophone patents], 1878, leaf 417](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten15unit-417-242.webp)

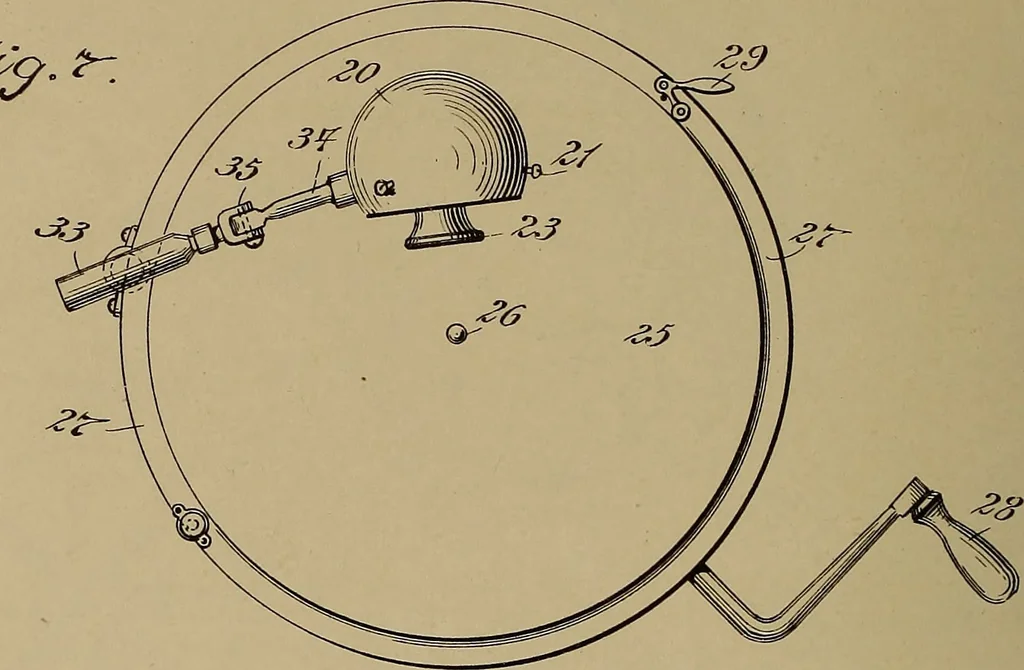

&u rwi 1,138,755, H. W. HESS. ACOUSTIC INSTRUMENT. APPLICATION FILED DEC. 31, 1913. Patented May 11,1915. 2 SHEETS-SHEET 2. /c&o. £-Phonograph · Patents
