United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 965

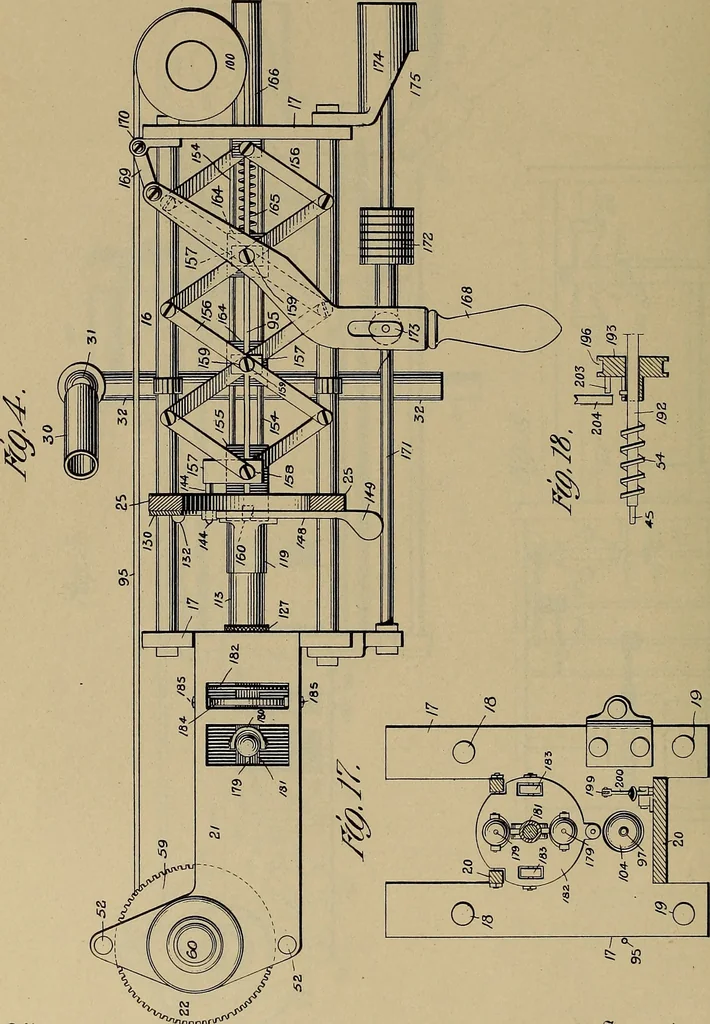

COLUMBIA PLANOORAPH CO.. WASHINGTON. D. C. 1,158,917. J. H. J. HAINES. MACHINE FOR RECORDING AND REPRODUCING SOUND. APPLICATION FILED JUNE 25, 1909. Patented Nov. 2, 1915. 6 SHEETS-SHEET 3.
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 965](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten15unit-965-505.webp)
