United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 967

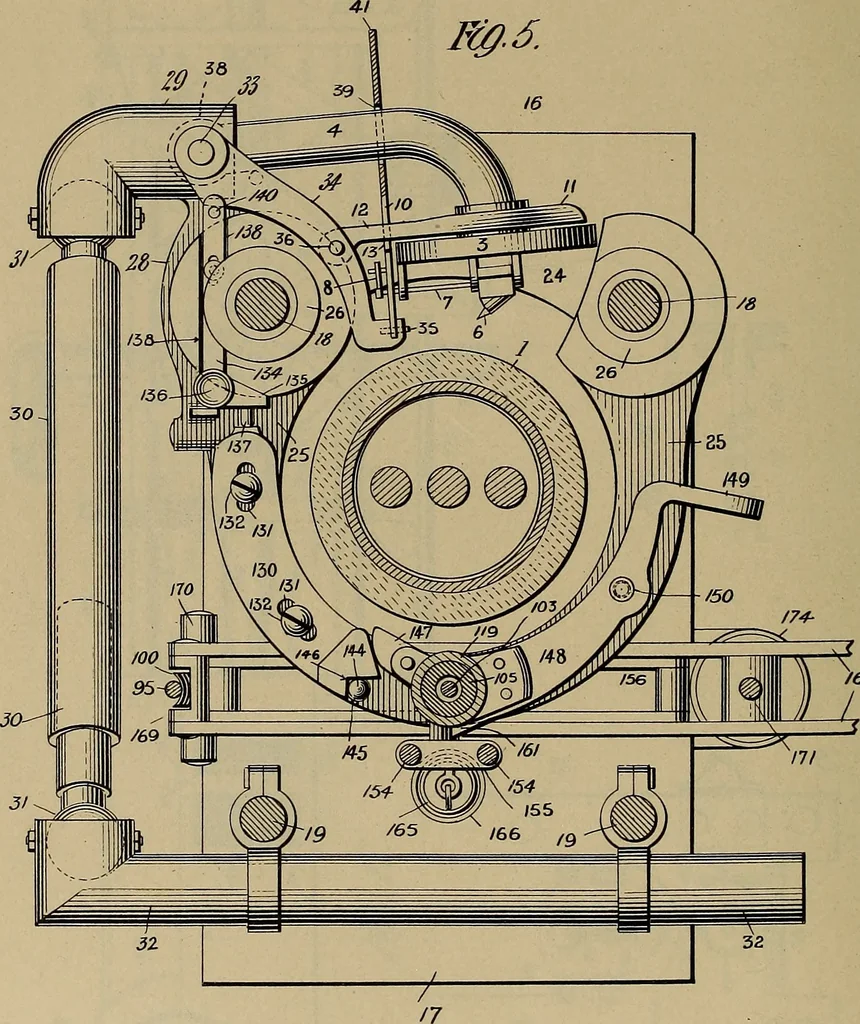

dwvevUoz ~^*~ COLUMBIA PLANOQRAPH CO.. WASHINGTON, D. C. J. H. J. HAINES. MACHINE FOR RECORDING AND REPRODUCING SOUND. APPLICATION FILED JUNE 25. 1909. 1,158,917. Patented Nov. 2, 1915. 6 SHEETS-SHEET 4. … /6S COLUMBIA PLANOQRAPH CO.. WASHINGTON. D. C. 1,158,917. J. H. J. HAINES. MACHINE FOR RECORDING AND REPRODUCING SOUND.APPLICATION FILED JUNE 25, 1909. Patented Nov. 2,1915. 6 SHEETS-SHEET 5.
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 967](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten15unit-967-507.webp)
