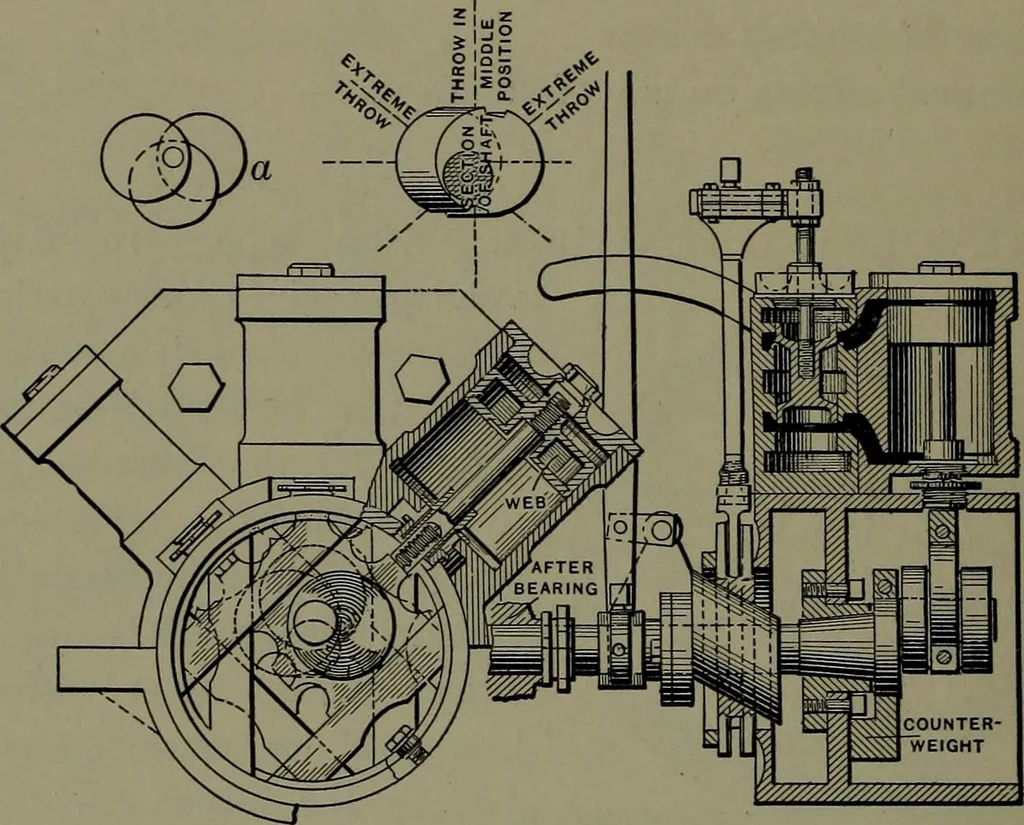

160. FRICTION RELIEF IN DVALVES. This novel method of relievingthe friction of slide valves consists in cuttingdiagonal grooves in the outer bearings of theport face of the steam chest, as shown at a, a.This relieves the pressure of the valve andfacilitates lubrication. 8o STEAM POWER APPLIANCES.… … crank pin and upon each of which a strap fixed to the piston rod ofeach cylinder slides in ways parallel with each piston rod. The throwof eccentrics and crank are each equal to one-half the piston stroke.The eccentrics are at 90° and 180°, as shown at a. The three pistonvalves are directly…
