[Graphophone patents] (1878)
United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 322
![An illustration from [Graphophone patents], 1878, leaf 322](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten19unit-322-0.webp)

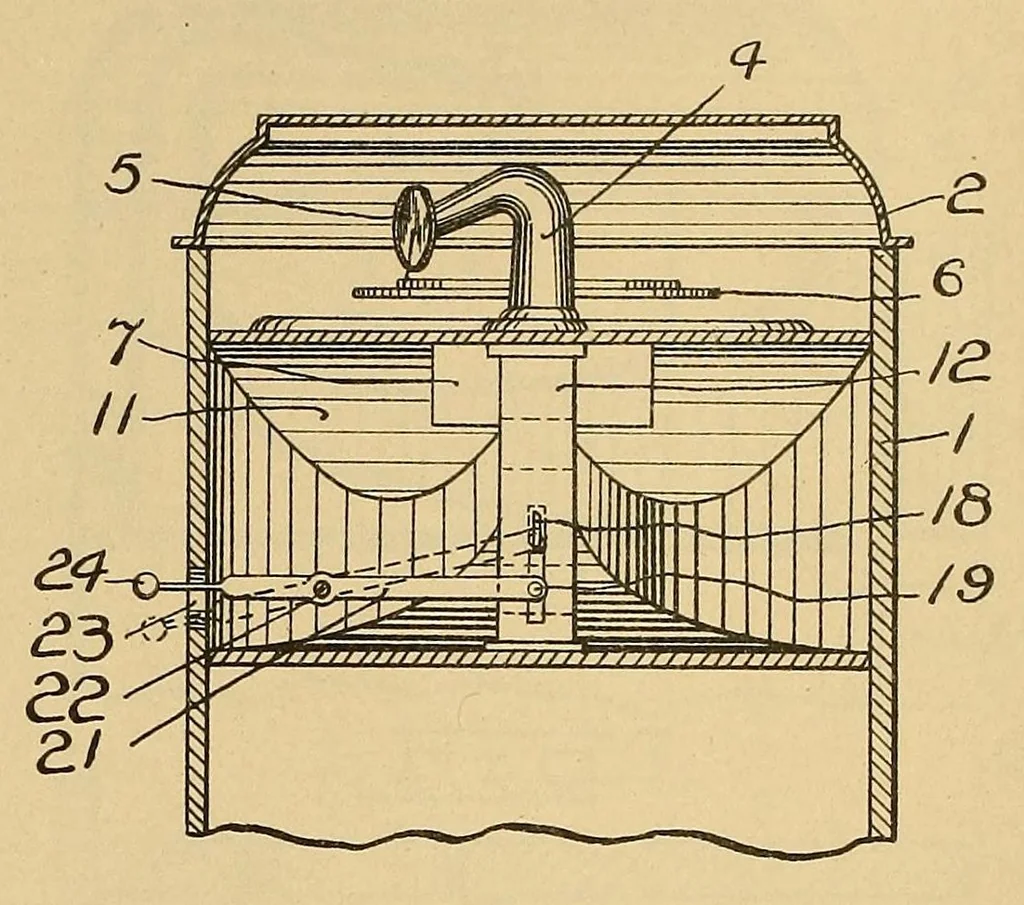

J. U. POIRIER. SOUND MODULATING DEVICE, APPLICATION FILED JAN. 19, 1917. Patented Aug. 21, 1917, 1,237,813, 2 SHEETS-SHEET 2. … FFg!3. ±- 1 izf.qj. INVENTOR WITNESS^ J.U.Poirier By Attorney .Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
